Description

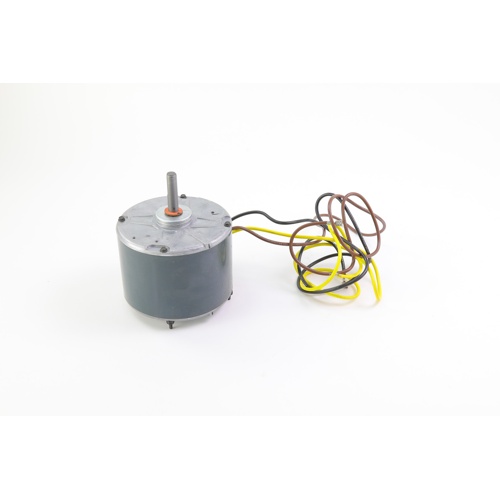

The International Comfort Products 1173716 is a factory-specified condenser fan motor engineered for reliable, long-lasting performance in residential and light commercial air conditioning applications. Designed as a direct OEM replacement, this motor delivers consistent airflow across the condenser coil to maintain efficient heat rejection and system capacity.
Electrical Specifications
- Voltage: 208–230 VAC
- Phase: Single Phase
- Amperage: 0.5 Amps
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Horsepower: 1/12 HP
- Speed: 800 RPM
- Number of Speeds: 1
- NEMA Frame Size: 48
- Bearing Type: Sleeve Bearing
- Mounting Style: Thru Bolt Mount
- Rotation: Clockwise (CW)
Key Features
- OEM-matched replacement for International Comfort Products systems
- Permanent Split Capacitor design for smooth, efficient starting and running
- Sleeve bearing construction for quiet, low-maintenance operation
- Thru bolt mounting for secure, vibration-resistant installation
- Single-speed operation for straightforward integration
- 48 NEMA frame ensures dimensional compatibility with standard condenser motor housings
Application
This condenser fan motor is designed for use in ICP-branded air conditioning and heat pump condensing units. Always verify the OEM part number against your equipment’s service literature before installation to ensure proper fit and performance.
