Description

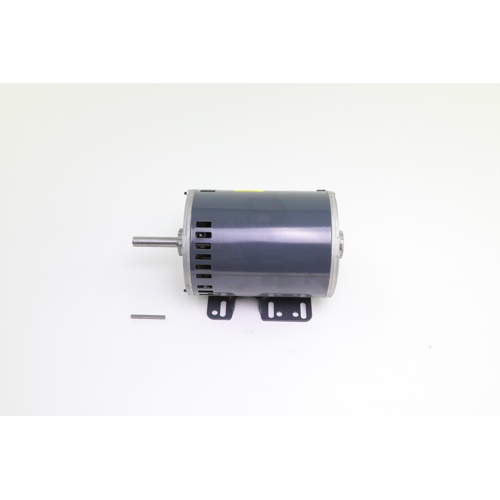

The International Comfort Products 1175478 is a heavy-duty commercial blower motor engineered for reliable, long-lasting performance in demanding HVAC air-handling applications. Designed as a direct OEM replacement, this motor delivers the precise airflow and efficiency needed to keep commercial and industrial systems running at peak capacity.
Key Features
- 2-1/2 HP output for robust blower performance in commercial HVAC systems
- Dual-voltage capability: 208-230/460 VAC for flexible installation across a wide range of electrical services
- Three-phase power for smooth, efficient operation and reduced electrical demand
- 1725 RPM operating speed for consistent, steady airflow delivery
- Single-speed configuration for straightforward control and wiring
- 5.2/2.6 amp current draw (high/low voltage) for accurate circuit sizing and protection
- 56Y NEMA frame size ensures broad cross-compatibility with standard motor mounts and housings
- Ball bearing construction for reduced friction, lower maintenance, and extended service life
- Rigid mount design for secure, vibration-resistant installation
- Reversible rotation allows field configuration for either clockwise or counterclockwise airflow direction
Specifications
- SKU: 1175478
- Brand: International Comfort Products (ICP)
- Horsepower: 2-1/2 HP
- Voltage: 208-230/460 VAC
- Phase: Three Phase
- Speed: 1725 RPM, 1 Speed
- Amperage: 5.2 A (208-230V) / 2.6 A (460V)
- Frame Size: 56Y NEMA
- Bearing Type: Ball Bearing
- Mount Type: Rigid Mount
- Rotation: Reversible
Application
This ICP blower motor is ideal for use in commercial air handlers, large fan coil units, and other HVAC equipment requiring a dependable three-phase motor. The 56Y NEMA frame and rigid mount configuration make installation straightforward, while reversible rotation provides added flexibility during setup. The dual-voltage winding allows the same motor to serve facilities with either 208-230V or 460V three-phase electrical systems, reducing the need to stock multiple motor variants.
