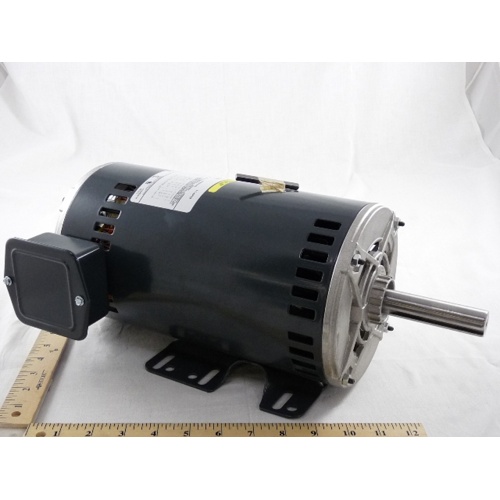

International Comfort Products 1176645 Blower Motor Overview
The International Comfort Products 1176645 is a heavy-duty commercial blower motor engineered for reliable, high-efficiency air movement in demanding HVAC applications. Rated at 5-1/4 horsepower and designed for three-phase power, this motor delivers consistent performance across a wide range of commercial heating and cooling systems. Its reversible rotation capability and rigid mount design make it a versatile replacement or upgrade solution for qualified technicians.
Key Specifications
- Horsepower: 5-1/4 HP
- Voltage: 208-230/460 VAC
- Phase: Three Phase
- Speed: 1,740 RPM (1 Speed)
- Full Load Amps: 15-7.4 Amps
- NEMA Frame Size: 145TY
- Bearing Type: Ball Bearing
- Mount Type: Rigid Mount
- Rotation: Reversible
Features & Benefits
- Three-phase operation for smooth, energy-efficient performance in commercial environments
- Dual-voltage design (208-230/460V) provides installation flexibility across a variety of electrical systems
- Ball bearing construction ensures long service life and reduced maintenance requirements
- Reversible rotation allows for flexible installation configurations
- Rigid mount design provides stable, vibration-minimized operation
- 145TY NEMA frame ensures dimensional compatibility with standard motor mounting applications
- 1,740 RPM operating speed delivers optimal airflow for commercial blower assemblies
Application
The ICP 1176645 blower motor is designed for use in commercial HVAC equipment requiring a robust, three-phase motor solution. Its dual-voltage capability and standard NEMA 145TY frame make it suitable for a wide range of replacement and retrofit applications in air handling units, rooftop units, and other commercial HVAC systems. Always verify compatibility with original equipment specifications before installation.
