Description

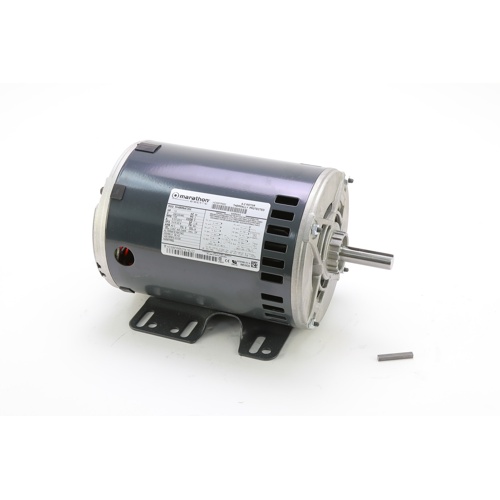

International Comfort Products 1178210 Blower Motor Overview
The International Comfort Products 1178210 is a heavy-duty commercial blower motor engineered for reliable, long-lasting performance in demanding HVAC air-handling applications. Rated at 1-1/2 horsepower and designed for three-phase power systems, this motor delivers consistent airflow and dependable operation in commercial and industrial equipment.
Key Specifications
- Horsepower: 1-1/2 HP (1.5 HP)
- Voltage: 208-230/460 VAC (dual voltage)
- Phase: Three Phase
- Speed: 1725 RPM, 1 Speed
- Amperage: 5.2 A (208-230V) / 2.6 A (460V)
- NEMA Frame Size: 56Y
- Bearing Type: Ball Bearing
- Mount Type: Rigid Mount
- Rotation: Reversible
Features & Benefits
- Dual Voltage Flexibility: Operates on 208-230V or 460V three-phase power, making it adaptable to a wide range of commercial electrical systems
- Ball Bearing Construction: Provides smooth, low-friction operation and extended service life compared to sleeve bearing alternatives
- Reversible Rotation: Allows field configuration of shaft rotation direction, simplifying installation and replacement across multiple equipment configurations
- 56Y NEMA Frame: Industry-standard frame size ensures broad compatibility with commercial air handlers and blower assemblies
- Rigid Mount Design: Delivers stable, vibration-resistant mounting for consistent motor alignment and reduced mechanical wear
- 1725 RPM Operating Speed: Optimized for high-efficiency blower performance in commercial HVAC systems
Application
Designed as a direct OEM replacement for International Comfort Products equipment, the 1178210 blower motor is ideal for commercial air handlers, fan coil units, and other three-phase HVAC blower assemblies requiring a 1-1/2 HP, 56Y frame motor. Its dual-voltage capability and reversible rotation make it a versatile solution for service technicians and HVAC contractors.
