Description

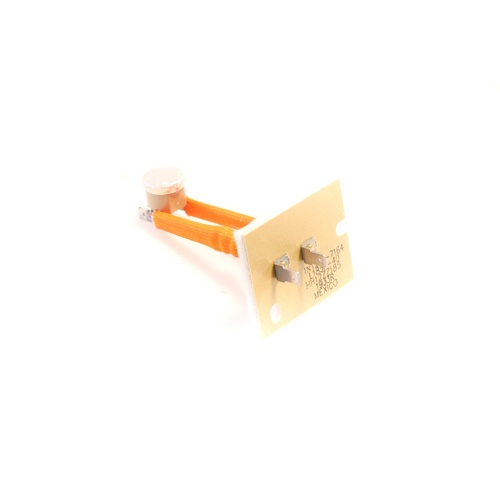

The International Comfort Products 1186809 is a factory-replacement high-limit switch engineered to protect furnaces and air handlers from dangerous overheating conditions. When supply-air temperatures rise to the trip point, the switch opens the control circuit — shutting down the burner and preventing heat exchanger damage or fire hazard. Once the system cools to the reset temperature, the switch automatically restores normal operation.
How It Works
The limit switch continuously monitors the air temperature inside the furnace plenum or heat exchanger compartment. If temperatures reach the open set point, the switch interrupts the 24-volt control circuit, de-energizing the gas valve and stopping combustion. The switch resets automatically when the temperature drops back to the close set point, allowing the system to resume normal heating.
Temperature Ratings
- Open (Trip) Temperature: 185°F
- Close (Reset) Temperature: 145°F
Key Features
- Genuine OEM International Comfort Products replacement part
- Direct drop-in replacement — no modifications required
- Protects heat exchanger and furnace components from thermal damage
- Automatic reset operation for reliable, continuous protection
- Compatible with select ICP, Heil, Tempstar, Arcoaire, and Comfortmaker furnace models
Application
- Designed for use in ICP-family residential and light-commercial gas furnaces
- Replaces worn, failed, or nuisance-tripping OEM limit switches
- Ideal for preventive maintenance and service calls requiring verified OEM components
Installation Notes
Always verify the open and close temperature ratings match the original equipment specification before installation. Disconnect power and gas supply before servicing. Consult the furnace service manual for mounting location, wiring diagram, and torque requirements.
