iO HVAC ZP2-HC-ESP-KIT 2-Zone 1H/1C Control Panel Kit with ESP

BRAND: iO HVAC Controls SKU: ZP2-HC-ESP-KIT

This product is only available to licensed contractors that are members of our TradesElite program.

*Already a member, login

2-Zone 1H/1C Control Panel Kit with ESP

Availability:

Estimated In Stock on May 8, 2024

Description

The ZP2-HC-ESP is a single-stage heat/cool zone panel designed to control 2 zones in residential and light commercial applications. The ZP3-HPS-ESP model is designed to fit 3 zone applications for heat pump or dual fuel systems in residential and light commercial applications. The ZP3-HCMS-ESP model is designed to fit 3 zone applications for multi-stage heating and cooling in residential and light commercial applications.

Use with MD Dampers only.

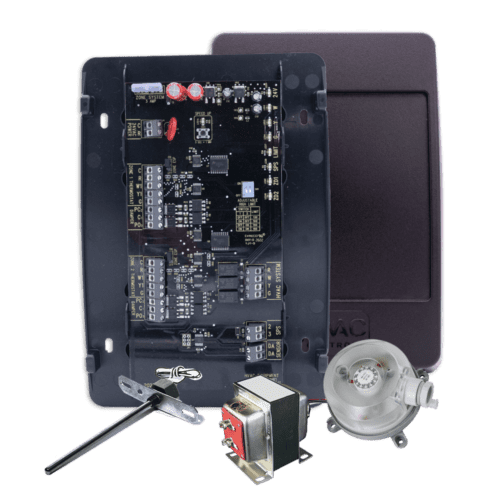

Kit includes:  Panel, static pressure sensor, duct temperature sensor and 40VA transformer

Features:
  • Built-in static pressure control eliminates the need for a bypass damper
  • Auto changeover
  • First call priority with time share
  • LED status indication
  • Independent fan control by zone
  • Short cycle protection
  • Competitively priced
  • Works with 2 or 3 wire zone dampers*
  • Adjustable high limit
  • Adjustable high and low balance point (HPS)

Features and Benefits

  • Easy to Install
  • First call priority with time share
  • LED status indication
  • Uses standard 3-wire zone dampers
  • Factory set (easy to adjust)
  • Prevents coil freeze-up
  • Eliminates air noise
  • Eliminates tight space issues
  • Electronic duct temperature sensor
  • Includes transformer

Additional information

Construction

,

Mounting Bracket Type

Operating Temperature

Dimensions

UPC 840119900439

Documents
