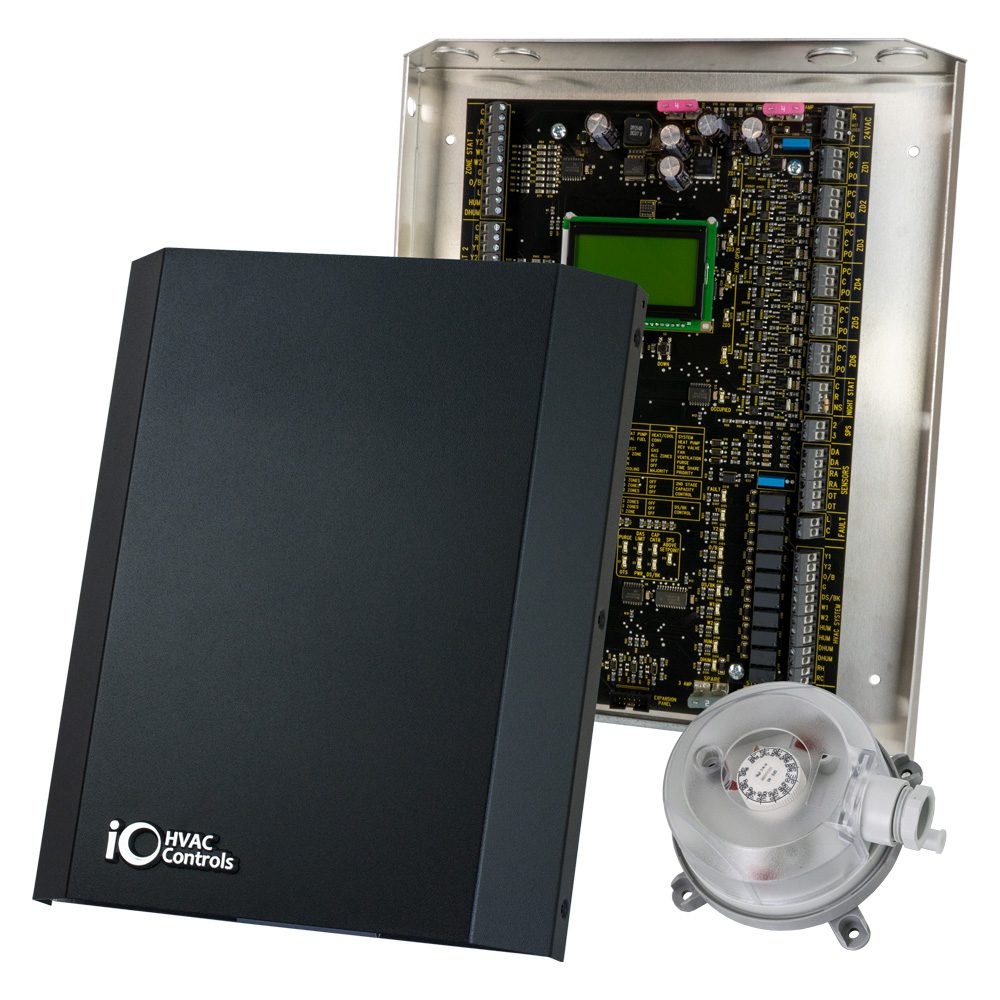

iO HVAC Controls ZP6-ESP 6-Zone Universal 4H/2C Zone Panel with ESP

BRAND: iO HVAC Controls SKU: ZP6-ESP

$675.68

MSRP: $777.03
You save 15%

6-Zone Universal Zone Control Panel with ESP

Free Shipping
Ships Tomorrow
Availability:

2 In Stock

Description

The ZP6-ESP is a 6 zone panel that integrates our award winning ESP technology to completely eliminate the need to install a bypass damper. This 4H/2C zone panel comes with a static pressure sensor. The system works like any standard zone control system with one exception; a static pressure sensor continuously monitors the system static pressure. If the static pressure goes above setpoint, the ESP panel will power the non-calling zone dampers open just enough to relieve the excess pressure. Tests indicate that bleeding a small amount of conditioned air for a short time into non-calling zones has little to no impact on the zone temperature.

The panel can be used with single-stage, multi-stage, heat pump and dual fuel equipment. Programmable LCD and slide switch configuration makes setup quick and easy. A wide range of control options provide ultimate application flexibility including adjustable high/low limits, adjustable high/low balance point, stage timing, capacity control and priority cooling control.

Features and Benefits

  • 6 zones expandable up to 12
  • Electronic static pressure relief option (No Bypass Required)
  • Adjustable high/low limit & high/low balance point control via LED interface
  • 2nd stage capacity control option
  • Auto changeover
  • Priority cooling or majority wins
  • Twenty minute time share option
  • LED status indication
  • Equipment fault pass-through indicator
  • LCD displays: Discharge air temperature, return air temperature and outdoor temperature
  • Optional night thermostat
  • Humidification & dehumidification pass through terminals (Zone 1)
  • Staging by zone thermostat or staging timer
  • Purge cycle option
  • DK and BK terminals work with most variable speed blowers
  • For use with 3 wire dampers
  • 10-year warranty

Additional information

Construction

Aluminum Back Plate, Mounting Holes

Purge Cycle

OFF or 1 min.

Fan Mode

All zones or by thermostat

Operating Temperature

High Balance Point (45? to 70? F), High Limit (100? to 180? F), Low Balance Point (0? to 40? F), Low Limit (30? to 46? F)

Dimensions

11" x 13.5" x 2"

Mounting Bracket Type

4 back plate screws

UPC 840119900552
