iO HVAC Controls ZP6-KIT 6-Zone 3H/2C Control Panel Kit

BRAND: iO HVAC Controls SKU: ZP6-KIT

This product is only available to licensed contractors that are members of our TradesElite program.

*Already a member, login

6-Zone 3H/2C Control Panel Kit w/ Sensor, 75VA Transformer

Free Shipping
Ships Next Business Day
Availability:

1 In Stock

Description

Formerly the Z-600. The ZP6 is a 6 zone, two-position forced air zone control panel that can be expanded to as many as 12 zones. The panel can be used with single-stage, multi-stage, heat pump or dual fuel equipment with up to 3 stages of heating and 2 stages of cooling. Slide switch configuration makes setup quick and easy. A wide range of control options provides ultimate application flexibility.

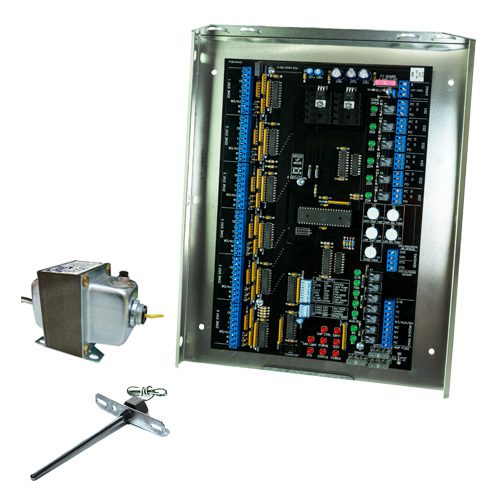

Kit includes:  Panel, duct temperature sensor and 75VA transformer

Features and Benefits

  • 6 zones expandable to 12
  • Auto changeover
  • Priority cooling or majority wins
  • Twenty minute time share option
  • LED status indication
  • On-board adjustable high and low limits and balance points
  • Staging by zone thermostat or adjustable staging timer
  • Purge cycle option
  • Electronic duct temperature sensor
  • Includes transformer
  • Competitively priced
  • 10-year warranty

Additional information

Construction

,

Mounting Bracket Type

Fan Mode

Purge Cycle

Adjustable Limits

Operating Temperature

Dimensions

UPC 840119900538

Compatible Products

Aprilaire
6404K
EWC
UZC-6
Honeywell
