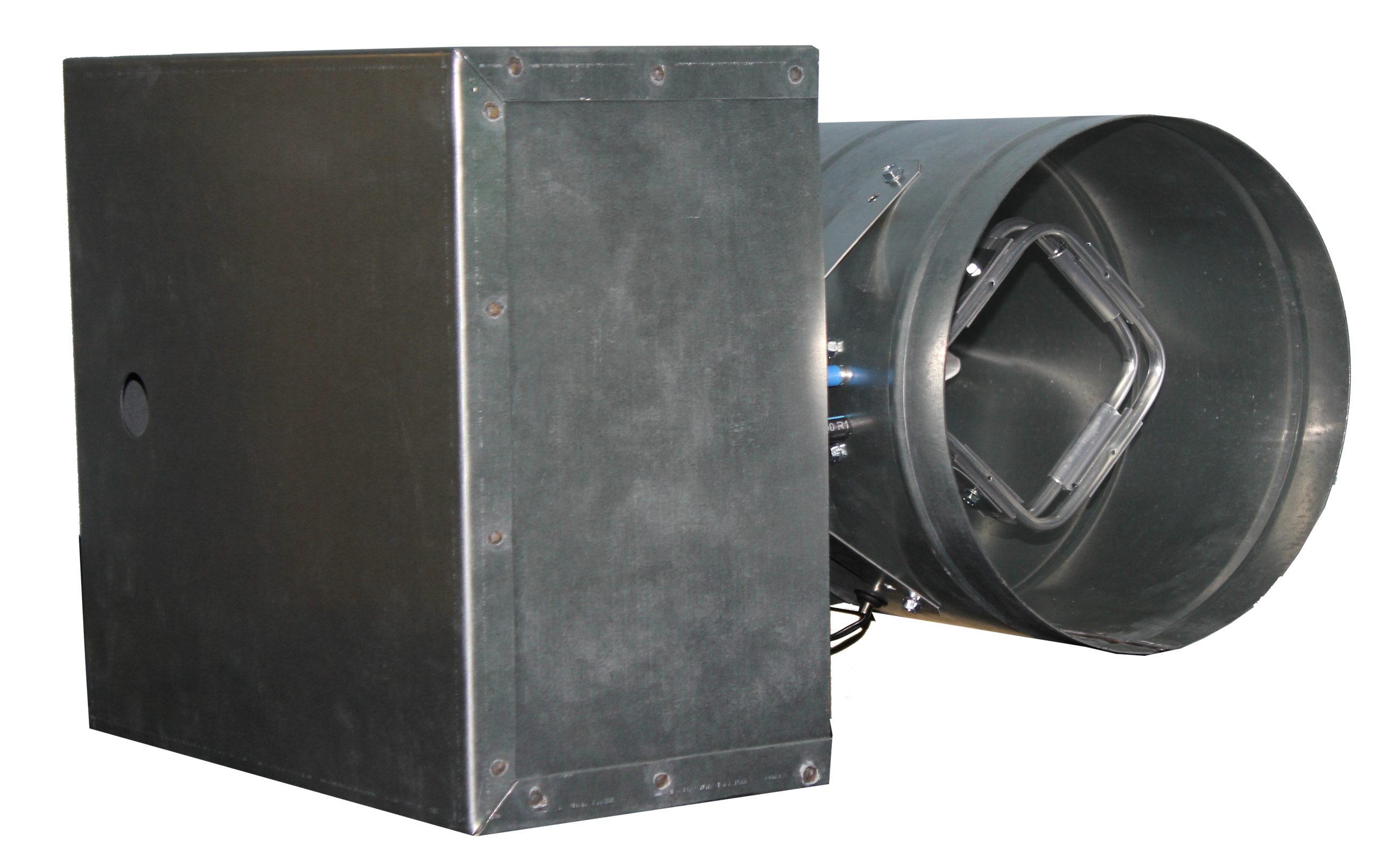

iO HVAC Controls RAT-XX Round Terminal Air Unit for Single Duct or Multi-Zone Retrofit

Description

The iO HVAC Controls RAT-XX Retrofit Air Terminal is a round terminal air unit retrofit option designed for low pressure single duct or multi-zone systems. The unit ships factory mounted and programmed, simplifying field installation. A multi-quadrant averaging flow sensor delivers highly accurate flow readings (±5%) across varying inlet duct configurations once the air terminal unit has undergone certified balancing, making the RAT-XX a reliable retrofit solution for accurate airflow measurement in existing duct systems. Available in sizes from 4″ to 16″ to accommodate a range of duct diameters.

Features:

• Round terminal air unit retrofit option for low pressure single duct or multi-zone systems
• Factory mounted and programmed for simplified installation
• Multi-quadrant averaging flow sensor for highly accurate (±5%) flow readings
• Accurate across varying inlet duct configurations after certified balancing
• Available in sizes from 4″ to 16″

Specifications:

• Sizes: 4″ to 16″ (round)
• Flow Accuracy: ±5%
• Sensor Type: Multi-quadrant averaging flow sensor
• Configuration: Factory mounted and programmed
