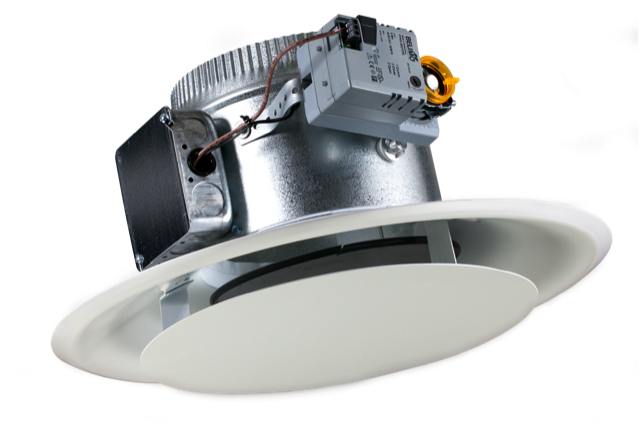

iO HVAC Controls VDR-XX Circular VAV Diffuser, All-Steel Construction, Multiple Sizes

Description

The iO HVAC Controls VDR-XX Circular VAV Diffuser is used to vary supply air volume in a ventilation system, controlled by a proprietary wall-mounted thermostat that comes as part of the Z-2000 system or functions as a standalone component in other applications. When more than one diffuser is required for a single zone, a round auxiliary diffuser can be paralleled to the VAV diffuser for expanded coverage. The VDR-XX features all-steel construction and includes a factory-mounted actuator with a discharge air sensor and PC board, providing integrated air volume control without additional field-installed components. The diffuser is available in 6″, 8″, and 10″ sizes, with aluminum construction and custom paint options also available.

Features:

• Varies supply air volume from a proprietary wall-mounted thermostat
• Compatible with the Z-2000 system or standalone ventilation applications
• Round auxiliary diffuser can be paralleled to a VAV diffuser when multiple diffusers are needed per zone
• All-steel construction with factory-mounted actuator, discharge air sensor, and PC board
• Available in 6″, 8″, and 10″ sizes
• Aluminum construction and custom paint options available

Specifications:

• Sizes: 6″, 8″, 10″
• Construction: All steel (aluminum available)
• Includes: Factory-mounted actuator, discharge air sensor, PC board
