Description

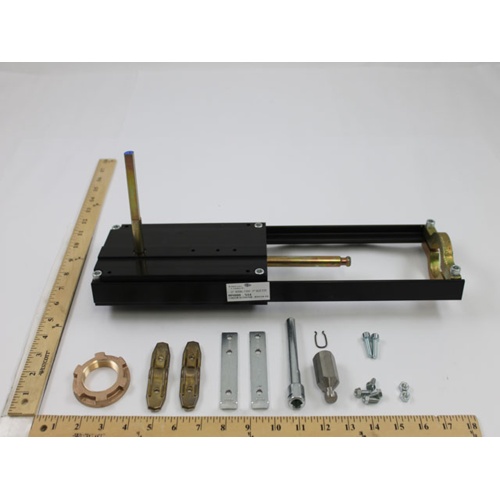

The Johnson Controls M9000-534 is a precision-engineered linkage kit designed to mechanically couple tandem M9124 or M9220 spring-return actuators to 5-inch flanged iron globe valves. This linkage provides a reliable, rigid connection between the actuator and valve stem, ensuring accurate and repeatable valve positioning in demanding commercial and industrial HVAC hydronic systems.
Key Features
- Designed specifically for 5″ flanged iron globe valve configurations
- Compatible with tandem mounting of M9124 and M9220 spring-return actuators
- Provides secure mechanical linkage for accurate valve stem positioning
- Engineered for reliable, long-term performance in commercial HVAC hydronic applications
- Genuine Johnson Controls replacement/accessory part for system integrity
Compatible Actuators
- Johnson Controls M9124 Spring-Return Actuator (tandem)
- Johnson Controls M9220 Spring-Return Actuator (tandem)
Application
The M9000-534 linkage is ideal for use in large-scale hydronic heating and cooling systems where 5-inch flanged iron globe valves require the added torque and force of tandem-mounted spring-return actuators. Tandem actuator configurations are typically employed when a single actuator does not provide sufficient force to operate larger or higher-pressure valves. This linkage ensures both actuators work in unison for smooth, synchronized valve operation.
Why Choose Johnson Controls
Johnson Controls is a globally recognized leader in building automation and HVAC control solutions. The M9000-534 linkage is manufactured to strict quality standards, ensuring seamless integration with Johnson Controls actuator and valve assemblies for dependable system performance.
