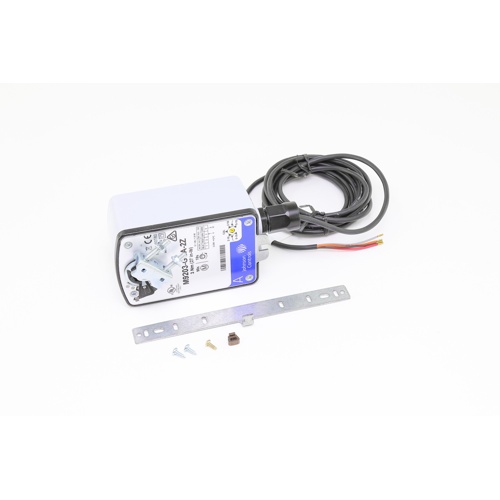

Johnson Controls M9203-GGA-2Z Spring Return Direct Coupled Actuator Overview
The Johnson Controls M9203-GGA-2Z is a high-performance proportional spring return direct coupled actuator engineered for precise damper control in commercial and industrial HVAC applications. Designed for reliable, fail-safe operation, this actuator returns to its spring-set position upon loss of power, making it ideal for critical air-handling and ventilation systems.
Key Features
- Proportional control for accurate, modulating damper positioning
- Spring return fail-safe design ensures damper returns to default position on power loss
- Direct coupled mounting — no crank arm or linkage required for simplified installation
- 27 lb-in output torque for reliable operation across a wide range of damper sizes
- 90-second power-on run time for smooth, controlled actuation
- 120″ (10 ft) plenum-rated cable with 1/2″ conduit connectors for code-compliant wiring in air plenums
Electrical Specifications
- Supply voltage: 24 Vac / 24 Vdc
- Control signal inputs: 0–10 Vdc, 2–10 Vdc, (0)4–20 mA (with 500 Ohm resistor)
- Compatible with a broad range of building automation and DDC control systems
Installation & Wiring
- Direct coupled design mounts directly to damper shaft — no external linkage needed
- 120″ plenum-rated cable simplifies routing in air-handling units and duct systems
- 1/2″ conduit connectors included for secure, code-compliant electrical connections
- Suitable for use in plenum-rated environments per applicable codes
Applications
- Variable air volume (VAV) systems
- Air handling units (AHUs)
- Economizer and outside air damper control
- Commercial building automation and DDC systems
- Exhaust, return, and supply air dampers
Why Choose the Johnson Controls M9203-GGA-2Z?
The M9203-GGA-2Z combines versatile multi-signal input compatibility with a robust spring return mechanism, giving building automation professionals a dependable, code-ready solution. Its plenum-rated cable and included conduit connectors reduce installation time and ensure compliance in air-side applications. Backed by Johnson Controls’ trusted engineering, this actuator delivers long-term reliability in demanding commercial HVAC environments.
