Description

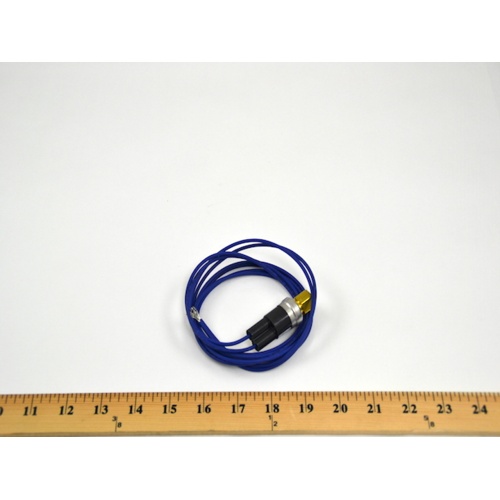

The Johnson Controls P100AP-15 is an encapsulated, direct-mount pressure control engineered for reliable pressure-sensing and switching in commercial and industrial HVAC and refrigeration systems. With its open construction design and SPST switching action, this control opens on a pressure drop — making it ideal for low-pressure safety cutout applications where automatic recovery is required.
Key Features
- Encapsulated design for enhanced durability and protection against environmental contaminants
- Direct-mount configuration for simplified installation without additional brackets or adapters
- SPST (Single-Pole, Single-Throw) switching action — opens on pressure drop
- Open construction for easy field inspection and serviceability
- Automatic reset operation — restores circuit automatically when pressure recovers to the close setpoint
- Wide voltage compatibility: 120/240 Vac contact ratings
- Open setpoint: 10 PSIG
- Close setpoint: 25 PSIG
Specifications
- Brand: Johnson Controls
- Model / SKU: P100AP-15
- Control Type: Encapsulated Pressure Control
- Mounting: Direct Mount
- Switch Type: SPST
- Action: Opens on Pressure Drop
- Construction: Open
- Contact Voltage Rating: 120/240 Vac
- Open (Cut-Out) Setpoint: 10 PSIG
- Close (Cut-In) Setpoint: 25 PSIG
- Reset Type: Automatic
Applications
- Low-pressure safety cutout on refrigeration and HVAC compressor circuits
- Refrigerant system low-side pressure monitoring
- Commercial cooling and refrigeration equipment protection
- Any system requiring automatic pressure-actuated switching with auto-reset capability
