Description

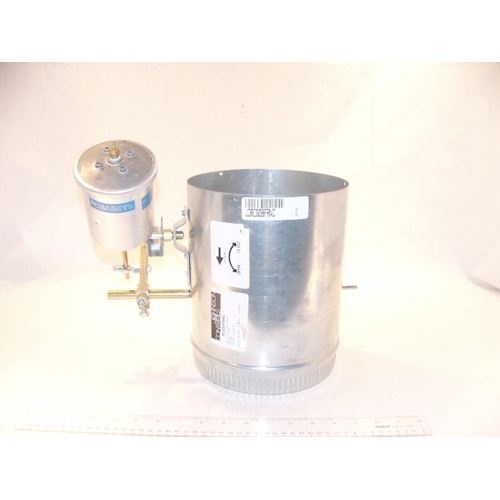

The Johnson Controls RCG08PRNC is an 8-inch round control damper engineered for dependable pneumatic airflow regulation in commercial HVAC systems. Featuring a normally closed (NC) fail-safe position, this damper automatically closes when pneumatic pressure is removed, making it ideal for applications where shutting off airflow on loss of signal is required for safety or energy efficiency.
Key Features
- 8-inch round duct diameter for straightforward installation into standard round ductwork
- Normally Closed (NC) configuration — damper closes on loss of pneumatic signal
- Spring range of 8 PSI to 13 PSI for precise pneumatic actuator control
- Galvanized steel construction for durability and corrosion resistance
- Designed for use in pneumatic HVAC control systems in commercial and light industrial applications
Product Specifications
- SKU: RCG08PRNC
- Brand: Johnson Controls
- Duct Size: 8 inches (round)
- Spring Range: 8 PSI to 13 PSI
- Fail-Safe Position: Normally Closed (NC)
- Body Material: Galvanized Steel
- Control Type: Pneumatic
Application
The RCG08PRNC is well-suited for variable air volume (VAV) systems, zone control, and other pneumatic HVAC control applications where accurate, pressure-responsive damper operation is essential. The galvanized steel body ensures long service life in demanding mechanical room and ductwork environments. Its normally closed design provides an added layer of safety by defaulting to a closed position during system shutdowns or signal failures.
