Description

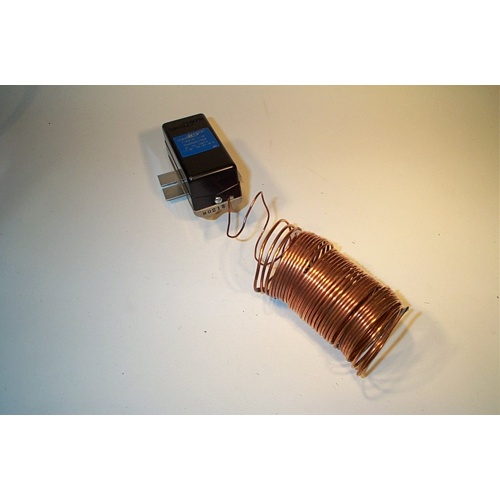

The Johnson Controls T-5210-1118 is a precision pneumatic temperature transmitter engineered for commercial and industrial HVAC control applications. It converts sensed temperature into a proportional pneumatic output signal, making it an ideal choice for building automation systems that rely on pneumatic control loops.
Key Features
- Operating temperature range: 0 to 100°F — suitable for a wide range of HVAC environments
- Element temperature range: 0 to 270°F — broad sensing capability for demanding applications
- 17-foot copper averaging element with 1-foot copper capillary — provides accurate mean-temperature measurement across ducts, pipes, or spaces
- Output pressure range: 3 to 15 Psig — standard pneumatic signal compatible with most pneumatic controllers and actuators
- Air consumption: 45 SCIM (Standard Cubic Inches per Minute) — efficient operation that minimizes compressed air demand
- Copper construction on sensing element and capillary for excellent thermal conductivity and durability
Application
The T-5210-1118 is designed for use in pneumatic building control systems where accurate temperature sensing and reliable signal transmission are critical. The long averaging element is particularly well-suited for duct averaging applications, ensuring that temperature readings reflect the true mixed-air condition rather than a single point measurement. Its 3 to 15 Psig output integrates seamlessly with standard pneumatic receiver controllers, thermostats, and actuators.
Specifications
- Brand: Johnson Controls
- Model / SKU: T-5210-1118
- Operating Temperature Range: 0 to 100°F
- Element Temperature Range: 0 to 270°F
- Sensing Element: 17-foot copper averaging element
- Capillary: 1-foot copper capillary
- Output Pressure Range: 3 to 15 Psig
- Air Consumption: 45 SCIM
- Signal Type: Pneumatic
