Description

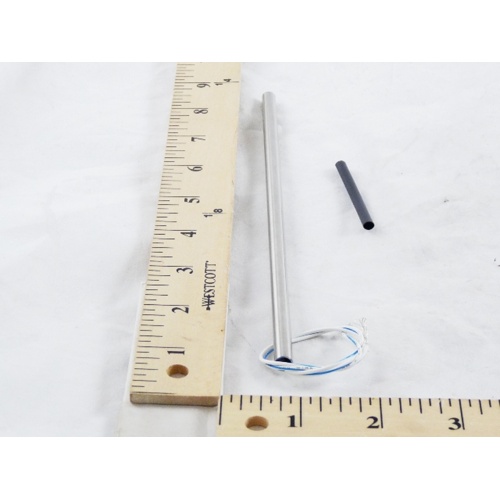

The Johnson Controls TE-6300-616 is a Platinum Class A RTD temperature probe engineered for precise, reliable temperature measurement in commercial HVAC and building automation applications. With a 1K Ohm (Pt1000) resistance element and an 8-inch probe length, this sensor delivers the tight accuracy tolerances demanded by Class A IEC 60751 standards, making it an ideal choice for demanding building control systems, air handling units, and hydronic applications.
Key Features
- Platinum Class A RTD element for superior measurement accuracy
- 1K Ohm (Pt1000) nominal resistance for excellent signal stability over long wire runs
- 8-inch probe length for versatile duct, pipe, or immersion installation
- High-accuracy Class A tolerance per IEC 60751 standards
- Compatible with Johnson Controls building automation and HVAC control systems
- Durable construction suited for commercial and light industrial environments
Why Choose a Platinum Class A RTD?
Platinum RTD sensors are widely recognized for their stability, repeatability, and linear response across a broad temperature range. Class A designation indicates the highest standard accuracy tier, ensuring tighter tolerances than Class B sensors. The Pt1000 (1K Ohm) configuration minimizes the effect of lead wire resistance, making it especially well-suited for longer cable runs common in commercial building systems.
Typical Applications
- Air handling unit supply and return air temperature sensing
- Hydronic piping and chilled/hot water loop monitoring
- Building automation system (BAS) integration
- Duct temperature measurement
- Commercial HVAC equipment control loops
Product Specifications
- Brand: Johnson Controls
- Model / SKU: TE-6300-616
- Sensor Type: Platinum RTD
- Accuracy Class: Class A (IEC 60751)
- Nominal Resistance: 1K Ohm (Pt1000)
- Probe Length: 8 inches
