Description

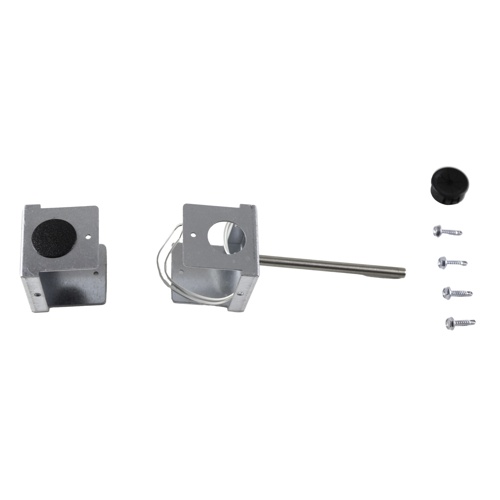

The Johnson Controls TE-631GM-1 is a precision duct-mount temperature sensor engineered for reliable air temperature monitoring in commercial and light industrial HVAC systems. Featuring a 4-inch nickel sensing probe and a 1,000 Ohm (1K Ohm) nickel resistance element, this sensor delivers accurate, stable temperature readings to building automation systems, controllers, and DDC panels.
Key Features
- Duct-mount design for straightforward installation into supply, return, or mixed-air ductwork
- 4-inch probe length provides effective air-stream immersion for accurate sensing
- Nickel resistance element offers excellent linearity and repeatability across a wide temperature range
- 1K Ohm (1,000 Ohm) output signal is compatible with a broad range of Johnson Controls and third-party DDC controllers
- Durable construction suited for continuous use in commercial HVAC applications
- Compact form factor simplifies installation in tight duct spaces
Applications
- Supply air temperature sensing in air handling units (AHUs)
- Return air and mixed-air temperature monitoring
- Building automation and direct digital control (DDC) systems
- Energy management and HVAC optimization applications
Product Specifications
- Brand: Johnson Controls
- Model / SKU: TE-631GM-1
- Mounting Type: Duct Mount
- Probe Length: 4 inches
- Sensing Element: Nickel
- Resistance Output: 1,000 Ohm (1K Ohm)
