Description

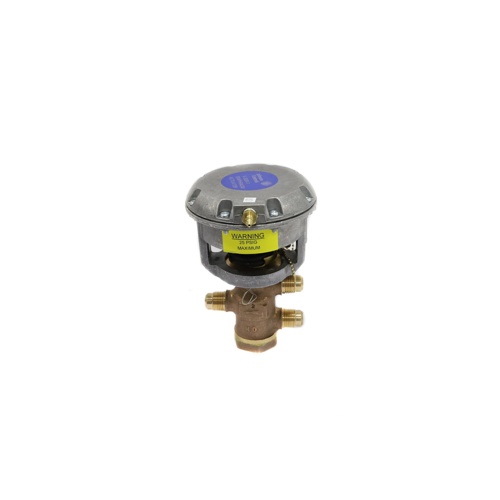

The Johnson Controls V-4332-1007 is a precision-engineered 1/2″ flare-connection, three-way mixing valve designed for reliable flow control in hydronic and pneumatic HVAC systems. With a 4 to 8 PSI spring range and dual-port Cv ratings, this valve delivers accurate mixing performance across a wide range of commercial and light industrial applications.
Key Features
- 1/2″ flare connection for easy, leak-resistant installation
- Three-way mixing configuration for precise blending of supply streams
- 4 to 8 PSI spring range for reliable pneumatic actuation
- 1 Cv PDTC (Pushdown-to-Close) port for controlled shutoff performance
- 1.5 Cv PDTO (Pushdown-to-Open) port for optimized flow capacity
- Durable construction suited for commercial HVAC hydronic systems
- Johnson Controls quality engineering for long service life and consistent performance
Valve Specifications
- SKU: V-4332-1007
- Brand: Johnson Controls
- Connection Type: 1/2″ Flare
- Valve Type: Three-Way Mixing
- Spring Range: 4 to 8 PSI
- PDTC Port Cv: 1
- PDTO Port Cv: 1.5
Typical Applications
- Hydronic heating and cooling systems
- Pneumatically actuated HVAC control systems
- Commercial building automation and temperature control
- Mixing and diverting service in fan coil and air handling units
