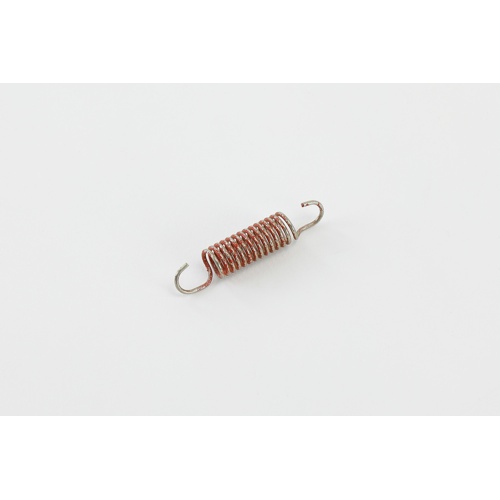

Johnson Controls V-9502-6802 Positioner Spring for V-3000 Actuated Valves

Description

Johnson Controls V-9502-6802 Positioner Spring Overview

The Johnson Controls V-9502-6802 is a precision-engineered positioner spring designed as a direct replacement and service component for use with V-3000 series actuated valves. This spring provides reliable, repeatable positioning performance in pneumatic valve control applications, ensuring accurate valve response across a range of system pressures and stroke requirements.

Key Features

• Designed specifically for use with Johnson Controls V-3000 series actuated valves
• Supports 5/16″ stroke for 8 PSI span applications
• Supports 1/2″ stroke for 12 PSI span applications
• Provides consistent, accurate valve positioning in pneumatic control systems
• Genuine Johnson Controls replacement component for dependable, long-lasting performance
• Engineered for straightforward installation and compatibility with existing V-3000 actuator assemblies

Application

The V-9502-6802 positioner spring is an essential service part for maintaining precise control in HVAC and building automation pneumatic valve systems. Whether servicing an existing installation or replacing a worn component, this spring ensures your V-3000 actuated valve continues to deliver accurate, pressure-responsive performance. Compatible with both 8 PSI and 12 PSI span configurations depending on the stroke selected, making it a versatile solution for a variety of pneumatic control applications.

Specifications

• SKU: V-9502-6802
• Brand: Johnson Controls
• Compatible Valve Series: V-3000 Actuated Valves
• Stroke / Span Option 1: 5/16″ Stroke for 8 PSI Span
• Stroke / Span Option 2: 1/2″ Stroke for 12 PSI Span
• Component Type: Positioner Spring
