Description

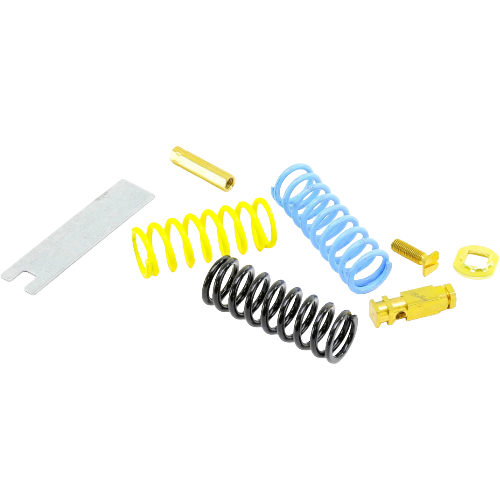

The Schneider Electric (Barber Colman) AV-400 Pneumatic Actuator Valve Linkage Kit is a field-assembly solution designed to connect MK-2690 series pneumatic actuators to a wide range of valve sizes. Built for commercial and industrial HVAC applications, this linkage kit simplifies installation and ensures reliable, repeatable pneumatic valve control across a variety of building automation and hydronic systems.
Key Features
- Designed to field-assemble MK-2690 pneumatic actuators to compatible valves
- Compatible with 1/2″ through 2″ valve sizes for broad application flexibility
- Includes three spring ranges to accommodate different control sequences: 3 to 7 PSI, 5 to 10 PSI, and 8 to 13 PSI
- Enables precise pneumatic actuation tailored to system pressure requirements
- Supports direct or reverse-acting configurations depending on spring selection
- Manufactured by Schneider Electric under the trusted Barber Colman product line
Included Spring Ranges
- 3 to 7 PSI spring
- 5 to 10 PSI spring
- 8 to 13 PSI spring
Applications
- Commercial HVAC hydronic systems
- Building automation and pneumatic control systems
- Chilled water and hot water valve control
- Field retrofit and replacement of existing pneumatic valve linkages
Why Choose the AV-400?
The AV-400 eliminates the need for pre-assembled actuator-valve combinations by allowing technicians to field-assemble the MK-2690 actuator directly to the appropriate valve on-site. The inclusion of three spring ranges in a single kit provides maximum versatility, allowing the installer to select the correct spring for the pneumatic control signal present in the system — minimizing downtime and reducing the need for multiple part numbers.
