Description
Overview

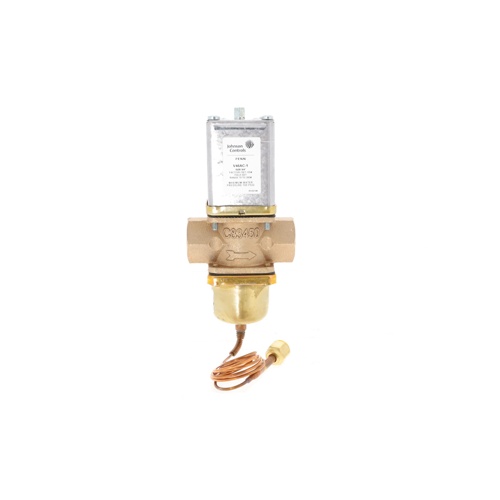

The Johnson Controls V46AC-1 is a direct-acting, pressure-actuated water regulating valve engineered for commercial HVAC and refrigeration applications. Built to handle the demands of non-corrosive refrigerant systems, this valve automatically modulates condenser water flow in response to refrigerant head pressure, helping maintain optimal system efficiency and protecting compressors from high-pressure faults.
Key Features
- 3/4″ NPT connection for straightforward installation into standard piping
- 70 to 260 PSI opening point range for broad compatibility across commercial refrigeration and HVAC systems
- Standard flow, commercial-type design rated for continuous duty in demanding environments
- Cast brass body construction delivers long-lasting durability and corrosion resistance
- Direct-acting pressure actuation — no external power source required for valve operation
- Designed for use with non-corrosive refrigerants
- 30″ capillary tube with 1/4″ flare nut connection (Style 45) for flexible sensing element placement
How It Works
The V46AC-1 senses refrigerant head pressure through its 30″ capillary and 1/4″ flare nut fitting. As head pressure rises, the valve opens to increase condenser water flow, cooling the refrigerant and lowering system pressure. When pressure drops to the setpoint, the valve closes to conserve water. This automatic, self-contained action requires no electrical power, making it a reliable and energy-efficient solution.
Specifications
- SKU: V46AC-1
- Brand: Johnson Controls
- Connection Size: 3/4″ NPT
- Opening Point Range: 70 to 260 PSI
- Flow Type: Standard Flow
- Body Material: Cast Brass
- Actuation: Direct Acting, Pressure Actuated
- Refrigerant Compatibility: Non-Corrosive Refrigerants
- Capillary Length: 30″
- Capillary Connection: 1/4″ Flare Nut
- Style: 45
- Application: Commercial Type
Applications
- Commercial refrigeration systems
- Water-cooled condensing units
- Chiller and HVAC systems using non-corrosive refrigerants
- Any system requiring automatic condenser water flow regulation based on refrigerant head pressure
