Description

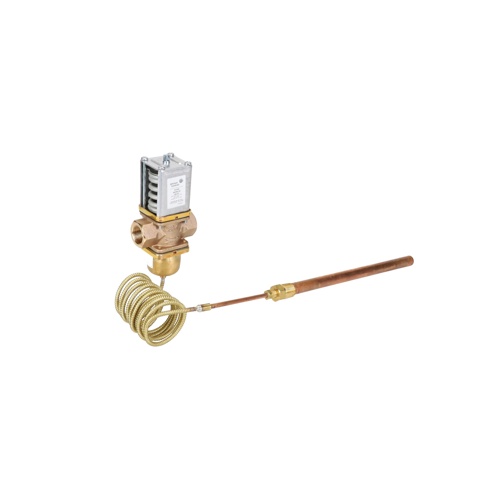

Johnson Controls V47AC-6 Temperature Actuated Water Regulating Valve
The Johnson Controls V47AC-6 is a direct acting, temperature actuated water regulating valve engineered for precision flow control in HVAC and hydronic systems. Constructed with a durable cast brass body, this valve automatically modulates water flow in response to temperature changes sensed by its remote bulb and capillary assembly — no external power source required.
Key Features
- Direct acting, temperature actuated operation for reliable, self-contained control
- Cast brass valve body for long-lasting corrosion resistance
- 3/4″ NPT main valve connection for straightforward installation
- 75°F to 135°F cross ambient point (sensing) range for versatile application coverage
- 6-foot capillary tube provides flexible remote bulb placement
- Style 4 bulb: 11/16″ diameter x 10″ long for accurate temperature sensing
- 1/2″ NPT external fitting for easy system integration
- No external power required — fully self-actuating design
Specifications
- SKU: V47AC-6
- Brand: Johnson Controls
- Valve Connection: 3/4″ NPT
- External Fitting: 1/2″ NPT
- Temperature Range: 75°F to 135°F (Cross Ambient Point Range)
- Capillary Length: 6 feet
- Bulb Style: Style 4
- Bulb Dimensions: 11/16″ diameter x 10″ long
- Body Material: Cast Brass
- Actuation Type: Direct Acting
Applications
- Condenser water flow regulation on water-cooled refrigeration and HVAC equipment
- Hydronic heating and cooling systems requiring temperature-based flow modulation
- Commercial and industrial process cooling applications
- Any system requiring self-contained, temperature-responsive water flow control
Why Choose the Johnson Controls V47AC-6?
The V47AC-6 delivers dependable, maintenance-friendly performance with its self-contained, direct acting design. The cast brass construction ensures durability in demanding water systems, while the 6-foot capillary and Style 4 bulb provide the installation flexibility needed for a wide range of commercial HVAC and refrigeration applications. Trust Johnson Controls engineering to keep your system running at peak efficiency.
