Description

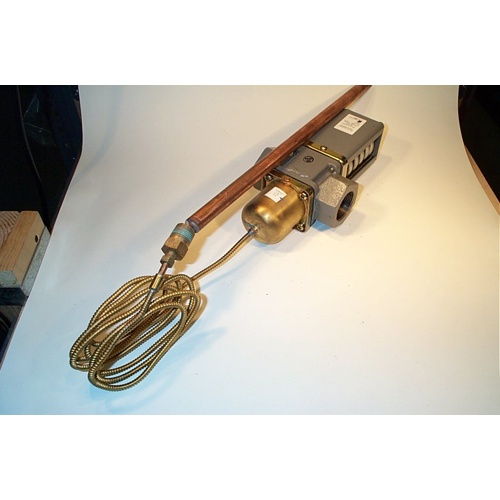

The Johnson Controls V47AE-1 is a direct acting, temperature actuated water regulating valve engineered for precision flow control in hydronic and HVAC systems. Built with a durable cast iron body and a 1-1/4″ NPT connection, this valve responds directly to temperature changes sensed through its remote bulb and capillary assembly — no external power source required.
Key Features
- Direct acting, temperature actuated operation for reliable, self-contained control
- Cast iron valve body for durability in demanding hydronic applications
- 1-1/4″ NPT inlet/outlet connections for standard piping compatibility
- 75°F to 135°F cross ambient point temperature range for precise sensing
- 6-foot capillary for flexible remote bulb placement
- Style 4 bulb: 11/16″ diameter x 16-1/4″ long for accurate immersion sensing
- 1/2″ NPT external fitting for secure bulb well or immersion installation
Product Specifications
- SKU: V47AE-1
- Brand: Johnson Controls
- Connection Size: 1-1/4″ NPT
- Body Material: Cast Iron
- Temperature Range: 75°F to 135°F (Cross Ambient Point Range)
- Capillary Length: 6 feet
- Bulb Style: Style 4
- Bulb Dimensions: 11/16″ diameter x 16-1/4″ long
- External Fitting: 1/2″ NPT
- Actuation Type: Direct Acting
Applications
- Hydronic heating and cooling systems
- Chiller and condenser water circuits
- Heat exchanger temperature control
- Commercial HVAC water regulation
- Boiler and process water systems
The V47AE-1’s self-contained, direct acting design eliminates the need for external power or control signals, making it an ideal solution for reliable, low-maintenance temperature-based water flow regulation. The extended Style 4 bulb ensures accurate fluid temperature sensing, while the 6-foot capillary provides installation flexibility in tight mechanical spaces.
