Description

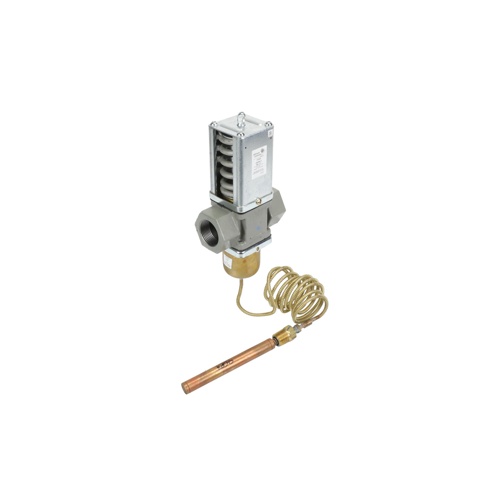

The Johnson Controls V47AE-2 is a direct acting, temperature-actuated water regulating valve engineered for reliable heating system control in commercial and industrial hydronic applications. Built with a durable cast iron body and a 1-1/4″ NPT connection, this valve responds directly to temperature changes without requiring an external power source, making it an efficient and dependable choice for a wide range of heating systems.
Key Features
- Direct acting, temperature-actuated operation — no external power required
- Cast iron valve body for long-lasting durability in demanding environments
- 1-1/4″ NPT inlet/outlet connection for straightforward installation
- 115°F to 180°F heating point range for precise temperature-based flow control
- 6-foot capillary tube provides flexible bulb placement relative to the valve body
- Style 4 sensing bulb: 11/16″ diameter x 6″ long for accurate immersion sensing
- 1/2″ NPT external fitting for easy bulb well or immersion installation
Specifications
- SKU: V47AE-2
- Brand: Johnson Controls
- Valve Body Material: Cast Iron
- Connection Size: 1-1/4″ NPT
- Temperature Range: 115°F to 180°F
- Capillary Length: 6 feet
- Bulb Style: Style 4
- Bulb Dimensions: 11/16″ diameter x 6″ long
- External Fitting: 1/2″ NPT
- Actuation Type: Direct Acting
Application
The V47AE-2 is ideal for use in hot water heating systems where automatic, temperature-driven flow regulation is required. The self-contained sensing system uses the 6-foot capillary and immersion bulb to detect water temperature and modulate flow accordingly, helping maintain consistent system temperatures and improving overall hydronic system efficiency. The 1/2″ NPT external fitting allows the sensing bulb to be installed in a thermowell or pipe fitting for accurate in-line temperature measurement.
