Description

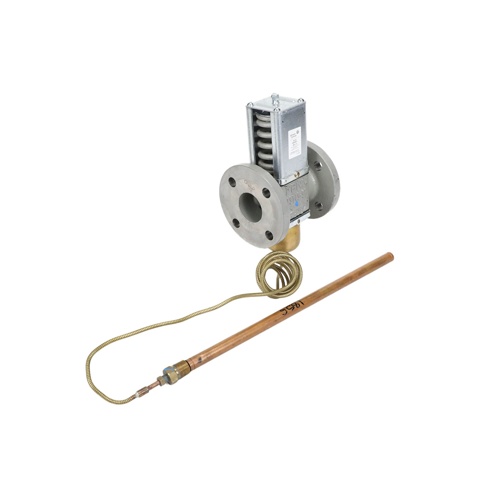

The Johnson Controls V47AR-1 is a direct acting, temperature actuated water regulating valve engineered for precise hydronic and HVAC system water flow control. Built with a durable cast iron body and a 1-1/2″ ASME flange connection, this valve is designed to handle demanding commercial and industrial applications where reliable temperature-based water regulation is essential.
The V47AR-1 responds directly to sensed temperature changes via its remote bulb and capillary assembly, modulating water flow to maintain system setpoints without the need for an external power source — making it a dependable, self-contained solution for a wide range of heating and cooling water circuits.
Key Features
- Direct acting, temperature actuated operation — no external power required
- 1-1/2″ ASME flange connection for secure, leak-resistant installation
- 75°F to 135°F cross ambient point (operating) temperature range
- Cast iron valve body for long-lasting durability in commercial and industrial environments
- 6-foot capillary tube for flexible remote bulb placement
- Style 4 bulb: 11/16″ diameter x 16-1/4″ long for accurate temperature sensing
- 1/2″ NPT external fitting for easy system integration
Specifications
- SKU: V47AR-1
- Brand: Johnson Controls
- Valve Type: Direct Acting, Temperature Actuated Water Regulating Valve
- Body Material: Cast Iron
- Connection Type: 1-1/2″ ASME Flange
- Temperature Range: 75°F to 135°F (Cross Ambient Point Range)
- Capillary Length: 6 feet
- Bulb Style: Style 4
- Bulb Dimensions: 11/16″ diameter x 16-1/4″ long
- External Fitting: 1/2″ NPT
Applications
- Commercial and industrial hydronic heating and cooling systems
- Chiller and condenser water circuits
- Heat exchanger water flow control
- Process cooling water regulation
- HVAC equipment requiring temperature-actuated water modulation
