Description

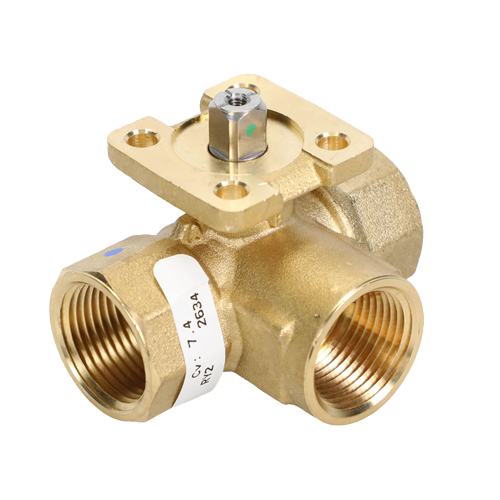

The Johnson Controls VG1845BL is a 3-way ball valve engineered for precise flow control in commercial HVAC hydronic and building automation systems. Built with a forged brass body and stainless steel trim, this valve delivers exceptional durability, corrosion resistance, and long-term reliability in demanding applications.
Key Features
- 3-way ball valve configuration for mixing or diverting service
- Equal percentage flow characteristic for accurate, proportional control across the full stroke range
- 7.4 Cv flow coefficient for optimized system performance
- 3/4″ NPT end connections for straightforward installation into standard piping
- Forged brass body construction for superior strength and pressure integrity
- Stainless steel trim for enhanced corrosion resistance and extended service life
- Designed for compatibility with Johnson Controls actuators in building automation and HVAC control systems
Application
The VG1845BL is ideal for use in hydronic heating and cooling systems, fan coil units, air handling units, and other commercial HVAC applications where reliable, modulating flow control is required. The equal percentage flow characteristic ensures stable, linear control response when paired with a compatible actuator, making it well-suited for variable flow and temperature regulation duties.
Specifications
- SKU: VG1845BL
- Brand: Johnson Controls
- Valve Type: 3-Way Ball Valve
- Flow Characteristic: Equal Percentage
- Cv Rating: 7.4
- Pipe Size: 3/4″
- End Connection: NPT (National Pipe Thread)
- Body Material: Forged Brass
- Trim Material: Stainless Steel
