Description

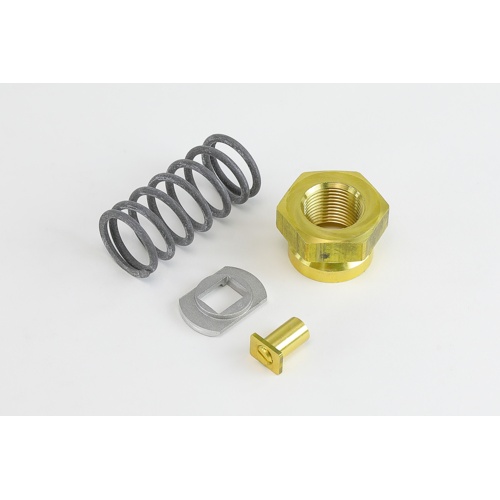

The Johnson Controls VG7000-1011 is a field-mountable spring range kit engineered to configure and optimize pneumatic actuator performance in commercial HVAC valve assemblies. Designed specifically for use with the V-3801-8001 pneumatic actuator, this kit provides a 4–8 PSI spring range that establishes the actuator’s operating pressure band, ensuring precise and reliable valve modulation.
Key Features
- Spring range: 4–8 PSI for accurate pneumatic control response
- Compatible with 1/2″ and 3/4″ valve bodies
- Designed for valves with a 5/16″ stroke
- Field-mountable design for easy on-site installation and spring range adjustment
- Engineered for use with the Johnson Controls V-3801-8001 pneumatic actuator
- Supports direct-acting or reverse-acting configurations depending on system requirements
Application
The VG7000-1011 spring kit is ideal for HVAC technicians and building automation professionals who need to field-adjust or replace the spring range on pneumatic actuator-driven valve assemblies. By setting the spring range to 4–8 PSI, the actuator responds predictably to pneumatic control signals, enabling smooth modulation of heating and cooling water flow in commercial hydronic systems.
Compatibility
- Actuator: Johnson Controls V-3801-8001 pneumatic actuator
- Valve body sizes: 1/2″ and 3/4″
- Valve stroke: 5/16″
Why Choose Johnson Controls
Johnson Controls is a globally recognized leader in building automation, HVAC controls, and pneumatic valve systems. The VG7000 series spring kits are manufactured to exacting tolerances, ensuring long-term reliability and consistent performance in demanding commercial HVAC environments.
