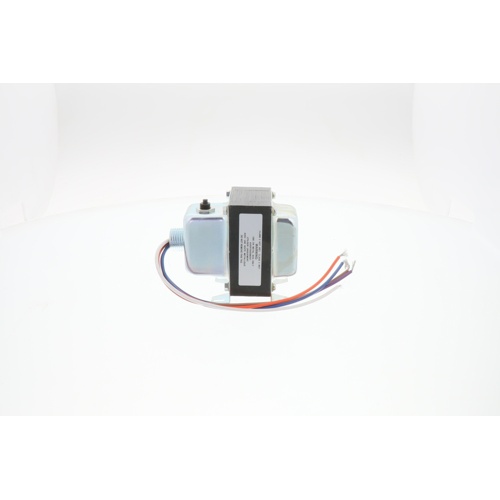

Johnson Controls Y66F12-0 Control Transformer Overview
The Johnson Controls Y66F12-0 is a robust step-down control transformer engineered for commercial and industrial HVAC applications. Designed to convert high-voltage primary power to a safe 24V secondary output, this transformer delivers reliable, stable power to control circuits in demanding building automation and HVAC control environments. The integrated circuit breaker provides built-in overcurrent protection, eliminating the need for a separate fuse and simplifying installation and serviceability.
Key Features
- 277/480V dual primary voltage for flexible installation across a wide range of electrical systems
- 24V secondary output — the standard control voltage for HVAC thermostats, actuators, and control boards
- 75 VA power capacity to support multiple control devices on a single transformer
- Integrated circuit breaker for built-in overcurrent protection and easy reset
- Common male fitting with 8″ primary leads for straightforward primary-side wiring connections
- Common male fitting with 8″ secondary leads for convenient secondary-side wiring connections
- Foot mount design for secure, stable panel or enclosure installation
Electrical Specifications
- Primary Voltage: 277/480V
- Secondary Voltage: 24V
- VA Capacity: 75 VA
- Primary Connections: Common male fitting with 8″ primary leads
- Secondary Connections: Common male fitting with 8″ secondary leads
- Overcurrent Protection: Integrated circuit breaker
- Mounting: Foot mount
Applications
- Commercial HVAC control systems
- Building automation and energy management systems
- Industrial control panels requiring 24V control power
- Fan coil units, air handling units, and VAV systems
- Thermostat and actuator power supply
Why Choose the Johnson Controls Y66F12-0?
Johnson Controls is a globally recognized leader in building technologies and HVAC controls. The Y66F12-0 transformer is built to meet the rigorous demands of commercial HVAC installations, offering dual primary voltage compatibility, a generous 75 VA capacity, and the convenience of an integrated circuit breaker. The pre-attached 8″ primary and secondary leads reduce field wiring time, while the foot mount design ensures a secure fit in electrical enclosures and control panels.
