Description

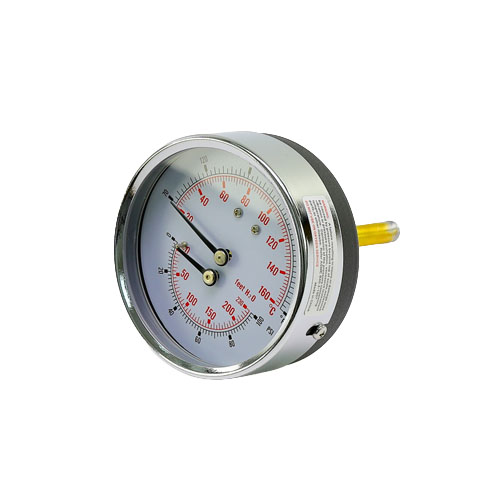

Kodiak Controls 4104-3.25-2-70 Dual-Scale Pressure & Temperature Gauge
The Kodiak Controls 4104-3.25-2-70 is a dual-scale pressure and temperature gauge engineered for reliable monitoring in hydronic heating, boiler, and HVAC system applications. With simultaneous PSI and °F readings on a single dial face, this gauge eliminates the need for separate instruments and simplifies system diagnostics at a glance.
Key Specifications
- Pressure Range: 0–100 PSI
- Temperature Range: 70–320°F
- Connection: 1/2″ Back Mount
- Stem Length: 2″
- Dial Size: 3.25″
- Dual-scale dial displays both pressure (PSI) and temperature (°F) simultaneously
Features & Benefits
- Dual-scale readout provides both pressure and temperature monitoring from one instrument
- 1/2″ back-mount connection for clean, panel-flush installation on boilers and hydronic systems
- 2″ stem length accommodates standard well and tee installations
- 3.25″ dial face for easy, at-a-glance readability
- Wide temperature range (70–320°F) suitable for hot water and low-pressure steam applications
- Durable construction designed for long-term performance in demanding mechanical environments
Typical Applications
- Hydronic heating systems
- Residential and commercial boilers
- Hot water heating loops
- Low-pressure steam systems
- Mechanical room pressure and temperature monitoring
