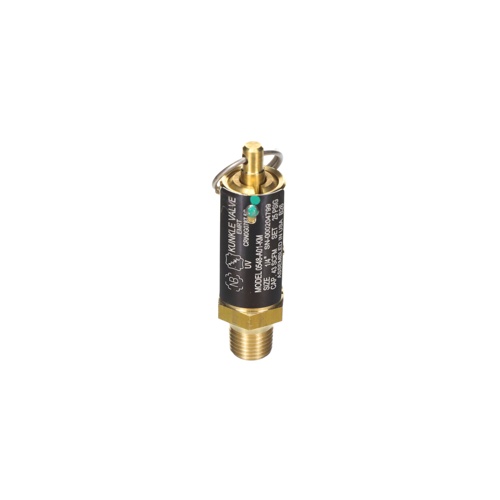

Kunkle Valve 0548-A01-KM0025 Air/Gas Pressure Relief Valve Overview
The Kunkle Valve 0548-A01-KM0025 is a precision-engineered air and gas pressure relief valve designed for reliable overpressure protection in commercial and industrial HVAC, pneumatic, and compressed air systems. With a 1/4″ Male NPT inlet connection, this valve is factory-set at 25 PSI and delivers a rated capacity of 43 SCFM, making it well-suited for a wide range of low-to-medium pressure applications. Its durable brass body and stainless steel ball seat ensure long-lasting corrosion resistance and consistent sealing performance across demanding service conditions.
Key Features
- 1/4″ Male NPT inlet connection for easy installation into standard piping systems
- Factory set at 25 PSI — no field adjustment required
- 43 SCFM rated flow capacity for efficient pressure relief
- Brass body construction for excellent corrosion resistance and durability
- Stainless steel ball seat provides a tight, reliable seal and extended service life
- ASME Section VIII certified for air and gas service — meets rigorous safety and performance standards
- Compact design suitable for tight installation spaces
Specifications
- SKU: 0548-A01-KM0025
- Brand: Kunkle Valve
- Inlet Connection: 1/4″ Male NPT
- Set Pressure: 25 PSI
- Flow Capacity: 43 SCFM
- Body Material: Brass
- Seat Material: Stainless Steel (Ball Seat)
- Media: Air / Gas
- Certification: ASME Section VIII
Applications
- Compressed air systems and pneumatic equipment
- Commercial and industrial HVAC systems
- Gas pressure protection on boilers and process equipment
- Air receivers and pressure vessels requiring ASME-certified relief
