Description

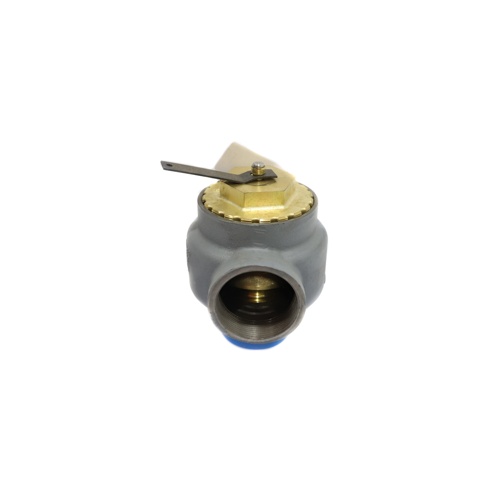

The Kunkle Valve 0930-K01-GC0015 is a heavy-duty ASME Section IV certified steam pressure relief valve engineered for reliable overpressure protection in commercial and industrial boiler and steam heating systems. Built with a rugged cast iron body, this valve is designed to handle the demanding requirements of high-capacity steam applications while delivering consistent, code-compliant performance.
Key Features
- 3″ Male NPT (MNPT) inlet connection for secure, leak-free installation
- 3″ Female NPT (FNPT) outlet connection for straightforward discharge piping
- Factory set at 15 PSI — no field adjustment required
- Rated capacity of 6,949 lb/h steam — ideal for high-demand boiler systems
- Cast iron body construction for durability and long service life
- ASME Section IV certified for steam heating boiler applications
Product Specifications
- SKU: 0930-K01-GC0015
- Brand: Kunkle Valve
- Inlet Connection: 3″ Male NPT (MNPT)
- Outlet Connection: 3″ Female NPT (FNPT)
- Set Pressure: 15 PSI
- Rated Capacity: 6,949 lb/h (steam)
- Body Material: Cast Iron
- Certification: ASME Section IV
- Media: Steam
- Valve Type: Pressure Relief Valve (PRV)
Applications
- Commercial and industrial steam heating boilers
- ASME Section IV compliant steam systems
- High-capacity boiler overpressure protection
- Steam distribution and process systems requiring 15 PSI relief
Why Choose Kunkle Valve?
Kunkle Valve is a trusted name in pressure relief and safety valve manufacturing, with decades of experience providing code-compliant solutions for boiler, steam, and pressure vessel applications. The 0930-K01-GC0015 is built to exacting standards, ensuring dependable protection for your system and peace of mind for operators and engineers alike.
