Description

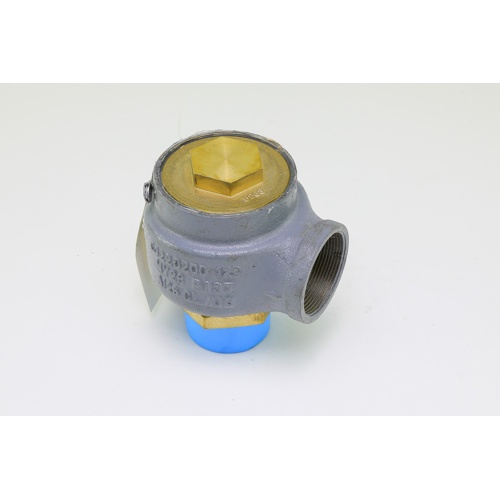

The Kunkle Valve 215V-H01AQE0015 is a heavy-duty non-code vacuum air relief valve engineered for dependable vacuum protection in industrial and commercial HVAC and process systems. Featuring a robust cast iron body, this valve is designed to open and relieve vacuum pressure before system components are subjected to damaging under-pressure conditions.
Key Features
- 2″ Female NPT inlet connection for straightforward inline installation
- 2″ Male NPT outlet connection for easy system integration
- Factory set at 15″ Hg vacuum — no field adjustment required
- High-capacity design rated at 426 SCFM (Standard Cubic Feet per Minute)
- Cast iron body construction for durability in demanding environments
- Non-code vacuum air (SCFM) relief valve — suitable for non-coded applications
- Kunkle Valve quality engineering for consistent, repeatable performance
Specifications
- SKU: 215V-H01AQE0015
- Brand: Kunkle Valve
- Inlet Connection: 2″ Female NPT
- Outlet Connection: 2″ Male NPT
- Set Pressure: 15″ Hg vacuum
- Capacity: 426 SCFM
- Body Material: Cast Iron
- Valve Type: Non-Code Vacuum Air Relief Valve
- Media: Air (SCFM)
Applications
- Industrial vacuum systems requiring pressure relief protection
- Commercial HVAC and process piping systems
- Non-code vacuum air service applications
- Systems requiring high-flow vacuum relief at 15″ Hg set point
