Description
Kunkle Valve 6010HGM01AAM0150 Overview

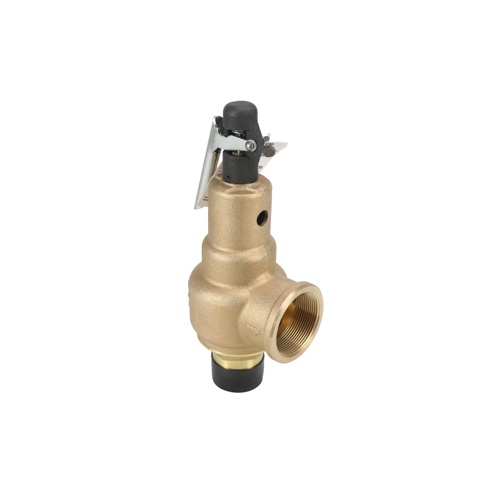

The Kunkle Valve 6010HGM01AAM0150 is a heavy-duty steam safety relief valve engineered for dependable overpressure protection in commercial and industrial boiler and steam system applications. With a 1.5″ inlet and 2″ outlet configuration, a 150 PSI set pressure, and a rated discharge capacity of 6,603 lbs/hr, this valve delivers the performance and reliability that steam system operators demand.
Key Features
- 1.5″ inlet x 2″ outlet connection configuration
- 150 PSI set pressure for steam service
- 6,603 lbs/hr rated discharge capacity
- Designed for steam relief and safety applications
- Built to Kunkle’s rigorous quality and performance standards
- Suitable for commercial and industrial boiler systems
Application
The Kunkle 6010HGM01AAM0150 is ideal for use on steam boilers, heat exchangers, and pressure vessels where reliable overpressure protection is critical. The valve automatically opens to relieve excess pressure and reseats once system pressure returns to a safe operating level, protecting equipment and personnel from dangerous overpressure events.
Why Choose Kunkle Valve
Kunkle Valve has been a trusted name in pressure relief for over 150 years. Their safety relief valves are recognized for precision engineering, consistent set-pressure accuracy, and long service life — making them a preferred choice among HVAC and industrial professionals worldwide.
