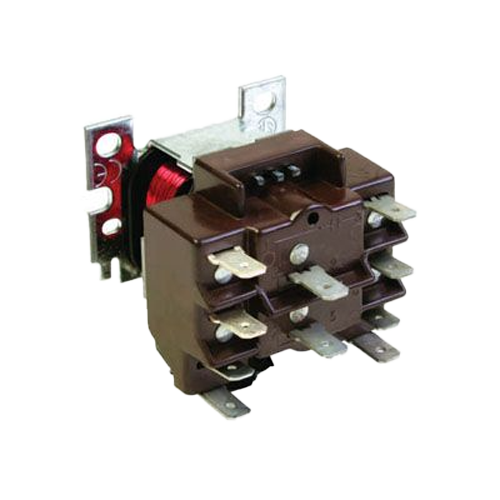

Lennox 10P21 General Purpose Relay with DPDT Switching

Description

Upgrade and protect your HVAC, refrigeration, or vending systems with the reliable Lennox 10P21 general-purpose relay. Designed for heavy-duty switching in demanding environments, this DPDT relay ensures precise control and long-lasting performance.

Features:

• Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation.
• Open coil assures cooler operation.
• Laminated magnet construction for higher efficiency.
• Double quick-connect spade terminals.
• Base designed for easy replacement of competitive relays.
• Plug compatible with Steveco 90-340 and Mars 90340.

Contact Ratings:

• Pilot Duty Ratings: Minimum: 3 VA @ 24 Vac, 120 Vac, & 480 Vac; Maximum: 25 VA @ 24 Vac, 125 VA @ 120 Vac, 240 Vac, & 480 Vac; Resistive: 3 A @ 277 Vac (0.75 power factor); PowerPile: (Normally Open Contacts Only) 0.25 A @ 0.25 to 12 Vdc
• Contact Ratings (AFL): 3 A @ 480 Vac; 6 A @ 208 Vac, 240 Vac, 277 Vac; 12 A @ 120 Vac
• Contact Ratings (ALR): 18 A @ 480 Vac; 35 A @ 208 Vac, 240 Vac, 277 Vac, 60 A @ 120 Vac
• Contact Ratings (resistive): 10 A @ 480 Vac; 20.8 A @ 120 Vac, 208 Vac, 240 Vac, 277 Vac
