Description

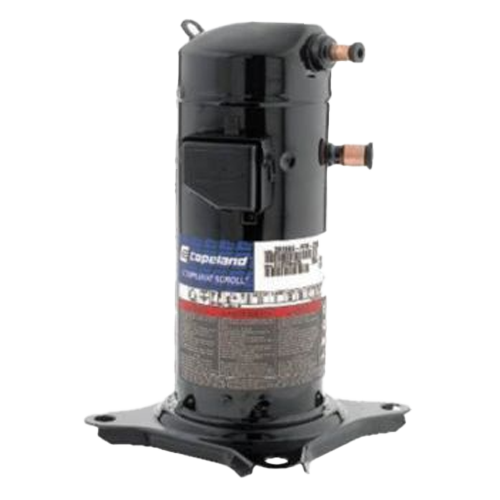

The Lennox 11C36 is a direct-fit OEM Copeland ZR42K5E‑PFV‑800 scroll compressor offering approximately 42,200 BTU (3.5‑ton) cooling capacity. Operating on 208–230 VAC, single-phase power at 60 Hz, it delivers smooth, high‑efficiency performance for residential and light-commercial Lennox HVAC systems.
Specifications:
- Product Height: 16.425 IN
- Product Width: 9.68 IN
- Compressor: Scroll
- Refrigerant: R22
- Diameter: 6.5 IN
- Tonnage: 3.5
- Gross Weight: 75.6 LB
- Suction Line: 7/8 IN
- Hertz: 60 hz
- Phase: 1 Phase
- RLA: 19.9
- Voltage Phase: 208-230/1
- LRA: 104
- EER: 11.3
- British Thermal Unit: 42.2K
- Type: Scroll Compressor
- Series: ZR
- Nominal Cooling Capacity: 42200 BTUH
- Motor Type: PSC
- Product Voltage: 208-230 VAC 1 Ph 60 Hz
- Gross Weight: 75.6 lbs.
- Diameter: 6.5 Inch
- EER: 11.3
- Refrigerant Type: R-22
- Product Height: 16.6 Inch
