Description

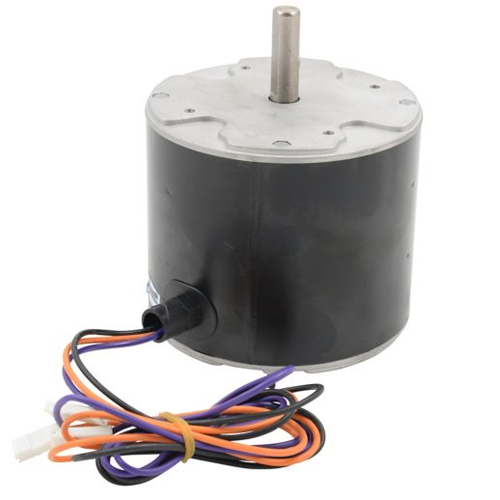

Optimize your outdoor units with the OEM Lennox 12F49 condenser fan motor, engineered for precise replacement in compatible Lennox systems and suitable for other manufacturers with matching specs.
Specifications:
- Product Height: 5.82 IN
- Horsepower: 1/10 HP
- Type: PSC
- Diameter: 4.8 IN
- Gross Weight: 8 LB
- Amperage (AMPs): 0.7A
- Bearing Type: Ball
- Hertz: 60 hz
- Phase: 1 Phase
- Shaft Length: 1.5
- Core Product: No
- Speed: 1
- Voltage Phase: 208/230-1
- NEMA Frame Size: 42
- Rotation: CCW from lead end
- Shaft Diameter: 0.5
- Motor Type: PSC
- RPM: 1075 RPM
- Motor HP: 1/10 HP
- Number of Speeds: 1 Speed
- Frame Size: 42
- Motor Mounting Position: Vertical
- Motor Mounting Type: Stud
- Motor Voltage: 208-230 VAC 1 Ph 60 Hz
- Shaft Size: 1/2 x 1.5 IN
- Capacitor Value: 5 MFD 370 VAC
- Rotation: CCWLE
