Description

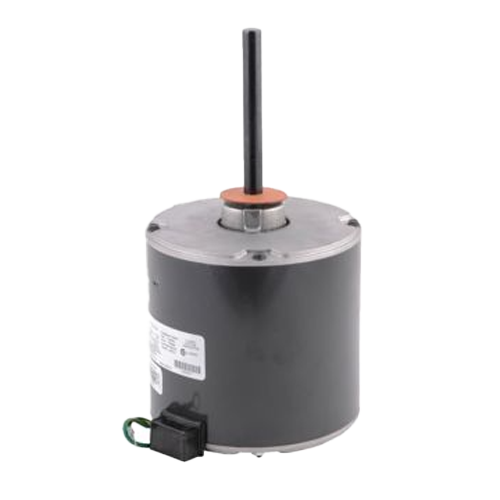

Ensure efficient heat rejection and quiet performance with the Lennox 13H36 condenser fan motor, a direct OEM replacement for Lennox and allied HVAC systems. Equipped with a 1/4 horsepower PSC motor, sleeve-bearing design, and 825 RPM speed, this motor restores proper condenser airflow and system reliability.
Specifications:
- Product Height: 10.25 IN
- Diameter: 5.6 IN
- Gross Weight: 17.25 LB
- Bearing Type: Sleeve
- Hertz: 60 hz
- Phase: 1 Phase
- Shaft Length: 3.5
- Voltage Phase: 208/230-1
- NEMA Frame Size: 48
- Rotation: CCW from lead end
- Shaft Diameter: 0.5
- Motor Type: PSC
- RPM: 825 RPM
- Motor HP: 1/4 HP
- Number of Speeds: 1 Speed
- Motor Voltage: 208-230 VAC 1 Ph 60 Hz
- Capacitor Value: 7 MFD 370 VAC
- Rotation: CCWLE
