Description

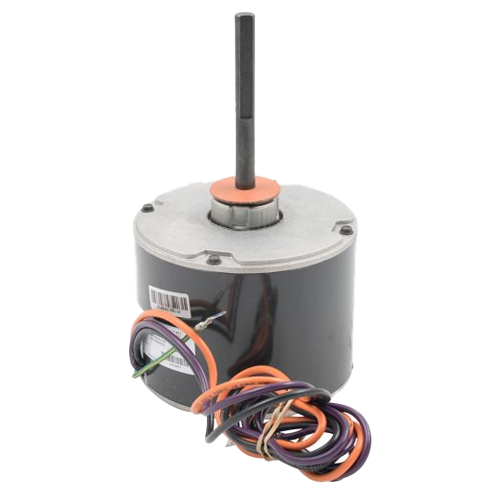

The Lennox 27H34 condenser fan motor offers precision OEM performance—1/10 HP, 825 RPM, CCWLE orientation, and exact OEM frame/mount dimensions. Engineered to maintain airflow, cooling efficiency, and system longevity, it’s a highly reliable one-speed upgrade and ideal for HVAC technicians seeking warranty-safe repairs.
Specifications:
- Horsepower: 1/10 HP
- Gross Weight: 11.35 LB
- Bearing Type: Sleeve
- Hertz: 60 hz
- Phase: 1 Phase
- Shaft Length: 5
- Country of Origin: USA
- Core Product: No
- Voltage Phase: 208/230-1
- NEMA Frame Size: 48
- Rotation: CCW from lead end
- Shaft Diameter: 0.5
- Motor Type: PSC
- Motor Type: PSC
- RPM: 825 RPM
- Number of Speeds: 1 Speed
- Motor Mounting Position: Vertical
- Motor Mounting Type: Belly Band
- Motor Voltage: 208-230 VAC 1 Ph 60 Hz
- Shaft Size: 1/2 x 5 IN
- Capacitor Value: 3.75 MFD 370 VAC
- Rotation: CCWLE
