Description

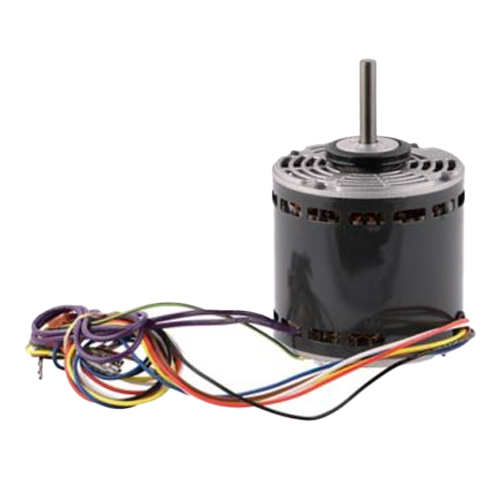

The Lennox 28F01 is a high-performance OEM 3/4 HP blower motor designed for horizontal mounting in select Lennox furnaces and air handlers. Featuring five speeds, 115 V single-phase power, and 1,075 RPM operation, it delivers reliable airflow, quiet performance, and efficient HVAC operation.
Specifications:
- Horsepower: 3/4 HP
- RPM Range: 1075
- Gross Weight: 19.5 LB
- Hertz: 60 hz
- Phase: 1 Phase
- Core Product: No
- Motor Type: PSC
- RPM: 1075 RPM
- Number of Speeds: 5 Speed
- Frame Size: 48
- Motor Mounting Position: Horizontal
- Motor Mounting Type: Hub Rings
- Motor Voltage: 115 VAC 1 Ph 60 Hz
- Shaft Size: 1/2 x 2.5 IN
- Capacitor Value: 40 MFD 370 VAC
- Rotation: CCWLE
- Bearing Type: Ball
- Motor Type: PSC
- Rotation: CCW/OSE
