Description

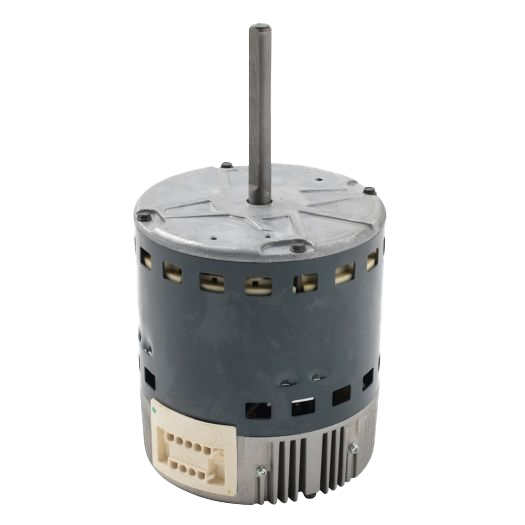

Elevate airflow performance and energy efficiency in your HVAC system with the Lennox 101564‑01 ECM Blower Motor, Cat #33W12. Designed to deliver precise control and long-lasting durability, this motor is an ideal OEM replacement for a wide range of furnace and air-handler applications.
Specifications:
- HP: 1/2
- Volts: 120/240
- Current: 7.4/4.3 Amps
- Phase: 1
- Hertz: 50/60
- RPM: 0-1200 (at full load – do not operate continuously below 300 RPM)
- Guaranteed max torque: 42oz/ft @ 1050 RPM
- Rotation: CW or CCW from control end
- Frame: NEMA 48
- Insulation Class: B
- Overload protector: electronically protected
