Description

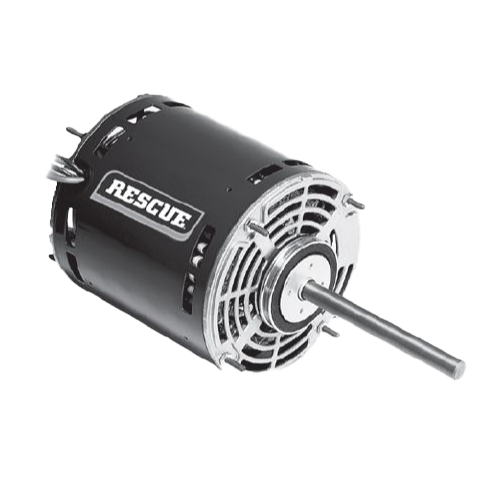

Restore airflow and comfort fast with the Lennox 76N17 Rescue Motor, a universal replacement designed to support a wide range of furnace and air handler models. Ideal for situations when OEM motors are out-of-stock, this rescue solution ensures a quick, reliable fix.
Specifications:
- Horsepower: 1/6-1/2 HP
- Diameter: 5.6 IN
- RPM Range: 1075
- Gross Weight: 16.35 LB
- Amperage (AMPs): 7.3 – 2.8 Amp
- Bearing Type: SAB
- Hertz: 60 hz
- Phase: 1 Phase
- Core Product: Yes
- Motor Type: PSC
- RPM: 1075 RPM
- Motor HP: 1/2 – 1/6 HP
- Number of Speeds: 4 Speed
- Frame Size: 48
- Motor Mounting Position: Horizontal
- Motor Mounting Type: Belly Band/Hub Rings/Stud
- Motor Voltage: 115 VAC 1 Ph 60 Hz
- Shaft Size: 1/2 x 5 IN
- Capacitor Value: 7.5; 10 MFD 370 VAC
- Rotation: Reversible
- Bearing Type: Sleeve
- Series: RESCUE
- Motor Type: PSC
