Description

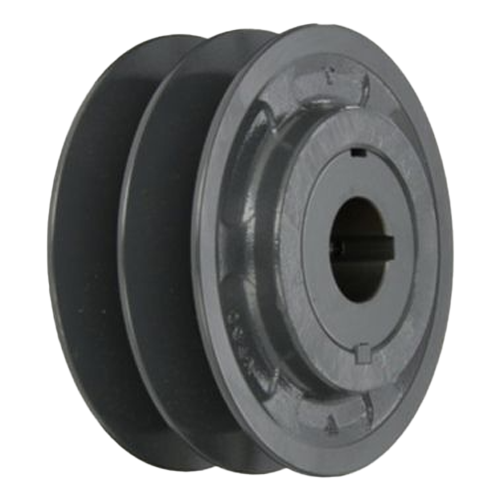

The Lennox 97J54 is a rugged variable‑pitch pulley built for dual-belt HVAC fan drives. With a durable cast iron construction, it features a 1‑1/8″ finished bore, two grooves, and an overall diameter of 4.75″, compatible with 3L, 4L (A section), and 5L (B section) V‐belts. Referred to as Browning 2VP50X 1 1/8, it’s used across several Lennox and Allied Air equipment models.
Specifications:
- Gross Weight: 5.9 LB
- Weight: 5.5 lbs
- Core Product: No
- Number of Grooves: 2-Groove
- Belt Type: 3L; 4L or A; 5L or B
- Type: Variable Pitch Cast Iron Finished Bore Pulley
- Pitch Diameter: 4L or A Belt: 3.4 to 4.4 Inch
- Bore Size: 1-1/8 Inch
- Outside Diameter: 4.75 Inch
