Description

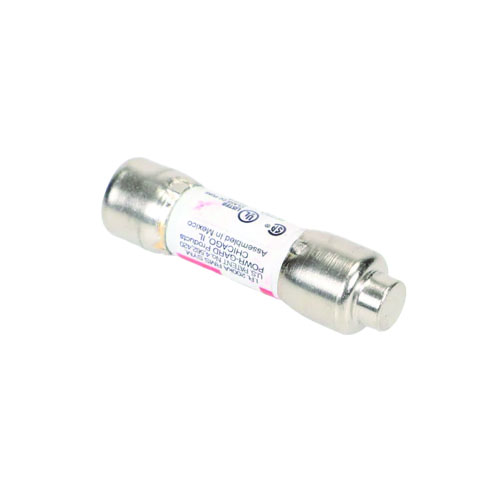

The Littelfuse KLDR008.TXP delivers precision overcurrent protection for demanding industrial applications. Rated at 8 amps and 600 volts AC (300V DC), this time-delay Class CC fuse is built to handle the temporary inrush currents generated by transformers, solenoids, and motors during startup — preventing unnecessary interruptions while still providing fast, dependable response to genuine overloads and short-circuit conditions.
Its current-limiting, rejection-style construction offers industrial-grade interrupting capacity in a compact form factor, making it an ideal fit for motor control centers, industrial control panels, and transformer protection circuits where panel space is at a premium. Compatible with standard Class CC fuse holders, the KLDR008.TXP simplifies installation without sacrificing performance. RoHS compliant construction ensures suitability for environmentally conscious and regulated applications.
Key Features
- 8A time-delay (slow-blow) protection for inductive and control circuit loads
- Rated for 600V AC / 300V DC operation
- Class CC current-limiting, rejection-style construction
- High interrupting capacity for industrial-grade short-circuit protection
- Withstands motor startup and transformer inrush currents without nuisance opening
- Compact design enables space-saving installation in Class CC fuse holders
- Suitable for motor control centers, control panels, and transformer protection
- RoHS compliant for environmentally responsible applications
