Description

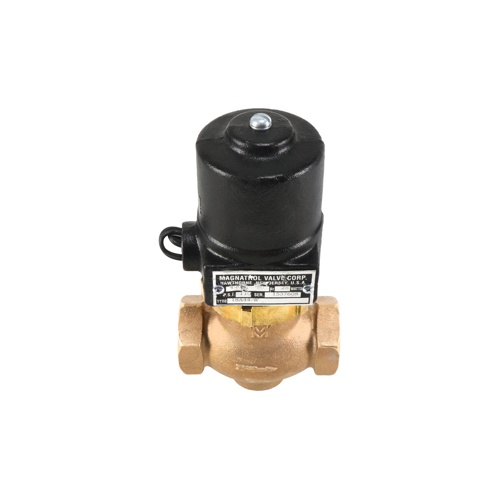

Magnatrol G18A44SC-ACBW Solenoid Valve Overview
The Magnatrol G18A44SC-ACBW is a heavy-duty, normally closed solenoid valve engineered for dependable liquid flow control in demanding HVAC, plumbing, and industrial applications. With a 1″ NPT connection, 120V coil voltage, and a maximum operating pressure of 110 PSI, this valve delivers consistent, leak-tight shutoff performance across a wide range of system configurations.
Key Features
- Normally Closed (N/C) operation — valve closes automatically when de-energized for fail-safe system protection
- 1″ NPT pipe connection for straightforward installation into standard piping systems
- 120V AC coil voltage — compatible with common commercial and residential electrical supplies
- Maximum operating pressure: 110 PSI — suitable for a broad range of liquid service applications
- Maximum fluid temperature: 212°F — handles hot water and high-temperature liquid media
- Designed specifically for liquid service applications
- Robust construction for long service life and minimal maintenance
Specifications
- SKU: G18A44SC-ACBW
- Brand: Magnatrol Solenoid Valves
- Connection Size: 1″ NPT
- Operation: Normally Closed (N/C)
- Coil Voltage: 120V AC
- Maximum Pressure: 110 PSI
- Maximum Fluid Temperature: 212°F
- Media: Liquid
Applications
- Hot water systems and hydronic heating
- Commercial and industrial liquid flow control
- HVAC equipment and process piping
- Automated shut-off and on/off liquid service applications
