Description

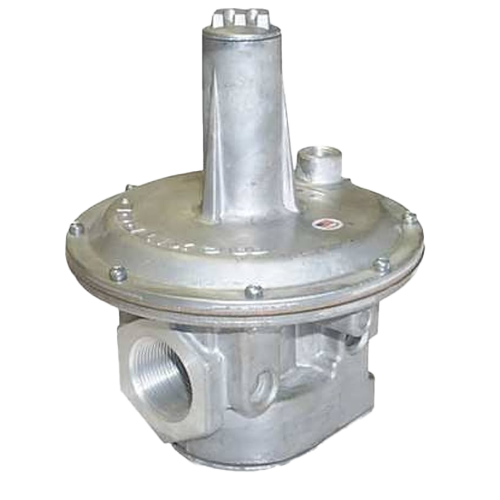

The Maxitrol 210D‑1 is a lock‑up type, balanced valve gas pressure regulator built for precise, stable gas flow control even when inlet pressures fluctuate. Ideal for high‑demand gas applications such as boilers, furnaces, ovens, and steam generators, this regulator delivers consistent outlet pressure with minimal “creep” or hunting. It features a 1″ NPT connection (female-threaded) and is built to endure a wide temperature range, making it versatile for many industrial and HVAC installations.
Specifications:
- Maximum inlet pressure 10 PSIG
- ANSI Z21.1880/CSA 6.3 certified
- 5-15″WC Outlet Range
- -40 – 200 degrees F temperature rating
- minimum regulation 25 CFH
- mount in upright position only
- Add on 13A15-5 vent protector for outdoor installation
- Natural gas or LP (Propane) gas
