Description

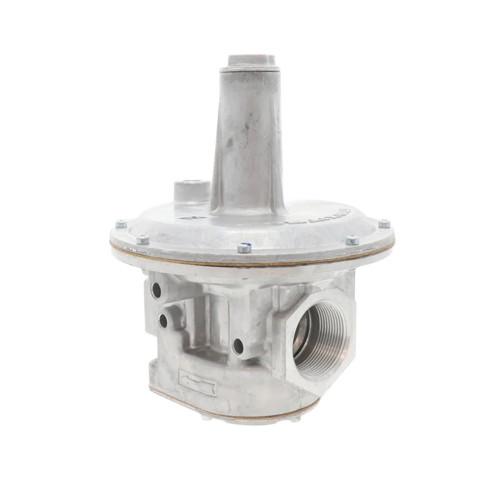

The Maxitrol 210DZ-1 1/2 is a high-performance, 1-1/2-inch zero governor gas pressure regulator engineered for precise flow control in demanding commercial and industrial gas applications. Part of Maxitrol's trusted 210Z Series, this lock-up type regulator features a balanced valve design that delivers steady, accurate outlet pressure control even with widely varying inlet pressures — making it the preferred choice for high-demand gas systems.
Key Features
- Connection Size: 1-1/2" NPT
- Maximum Inlet Pressure: 5 PSI (CSA Certified) | Emergency Exposure Limit: 25 PSI
- Outlet Pressure Range: -1.0" to +1.5" W.C. (Zero Governor)
- Housing Material: Durable aluminum construction
- Mounting: Upright position only
- Ambient Temperature Range: -40°F to 200°F (-40°C to 93°C)
- Sensing Taps: Four convenient tap locations for downstream sensing, cross connections, and differential control
- Remote Sensing Option: Available — add suffix "R" to model number when ordering
- Certifications: ANSI Z21.80 / CSA 6.22 Listed
- Compatible Gas Types: Natural gas, manufactured gas, mixed gases, liquefied petroleum (LP) gases, and LP gas-air mixtures
