Description

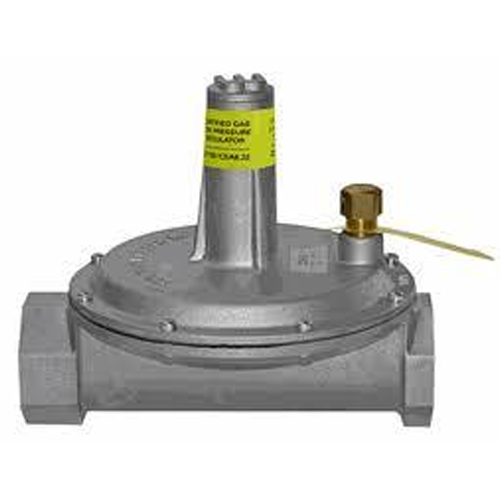

The Maxitrol 325‑9L‑2‑12A49 is a robust 2” NPT line pressure gas regulator designed for 2 PSI indoor piping systems. Equipped with a factory-installed 12A49 vent limiting device, this regulator delivers high performance and enhanced safety by restricting internal gas escapement in the event of diaphragm failure—ideal for indoor installation without requiring external vent piping.
Features:
- ANSI Z21.80/CSA 6.22 certified
- 2 PSIG Inlet pressure
- 7-11″WC Outlet Range
- 2,250,000 BTUH maximum individual/total load
- Positive dead-end lockup regulator
- Install indoor & horizontal with 12A49 vent limiter installed
- Natural gas or LP (Propane) gas
