Description

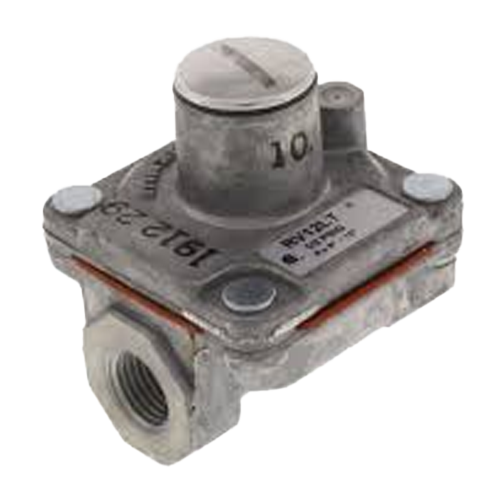

The Maxitrol RV12LT‑1/8 is a compact poppet‑style gas pressure regulator designed for low‑flow applications such as pilot burners or small main burners. It delivers precision control in low differential pressure environments, where controlling small gas flows is critical. Built with a rubber‑seat poppet design and an aluminum die‑cast body, the RV12LT provides reliable, accurate pressure regulation over a 3–5″ W.C. spring range. It is compatible with natural gas, manufactured gas, LP, or gas‑air mixtures.
Specifications:
- Size: 1/8″
- BTU Capacity (Burner): 30000
- BTU Capacity (Burner and Pilot): 25000
- BTU Capacity (Fixed Orifice): 20000
- Spring Range: 3″ – 5″
- Max Inlet Pressure: 1/2 PSI
