Description

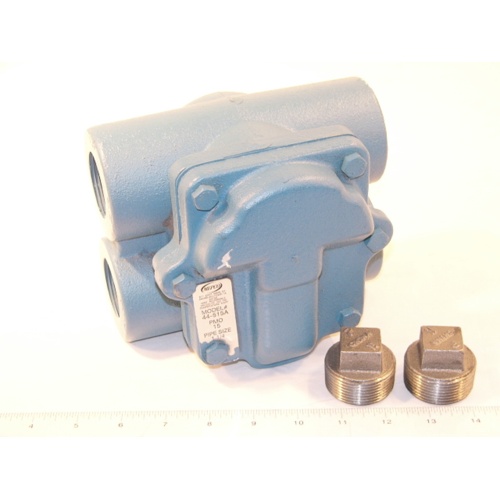

The Mepco (Dunham Bush) ML9621 is a 1-1/4″ Float & Thermostatic (F&T) steam trap designed for dependable condensate removal in low-pressure steam heating systems. Carrying the model designation 44-515A and rated at 15 PSI, this trap combines a float-operated main valve with a thermostatic air vent to deliver continuous, automatic condensate drainage while preventing steam loss and eliminating air binding.
Float & Thermostatic traps are the preferred choice for heat exchangers, unit heaters, coils, and other steam-heated equipment where a continuous and high-volume condensate load must be handled efficiently. The float mechanism responds instantly to condensate levels, while the integral thermostatic element purges non-condensable gases — keeping your system running at peak thermal efficiency.
Key Features
- Float & Thermostatic (F&T) design for continuous condensate discharge
- 1-1/4″ connection size for high-capacity condensate handling
- Rated for 15 PSI steam systems
- Model 44-515A — direct Mepco (Dunham Bush) replacement reference
- Integral thermostatic air vent eliminates air binding and improves heat transfer
- Suitable for unit heaters, coils, heat exchangers, and steam mains
- Robust construction for long service life in demanding hydronic and steam applications
Specifications
- Brand: Mepco (Dunham Bush)
- SKU / Part Number: ML9621
- Model: 44-515A
- Connection Size: 1-1/4″
- Trap Type: Float & Thermostatic (F&T)
- Maximum Working Pressure: 15 PSI
Applications
- Low-pressure steam heating systems
- Unit heaters and cabinet heaters
- Steam coils and heat exchangers
- Commercial and industrial HVAC steam distribution
- Hydronic and steam boiler systems
