Description

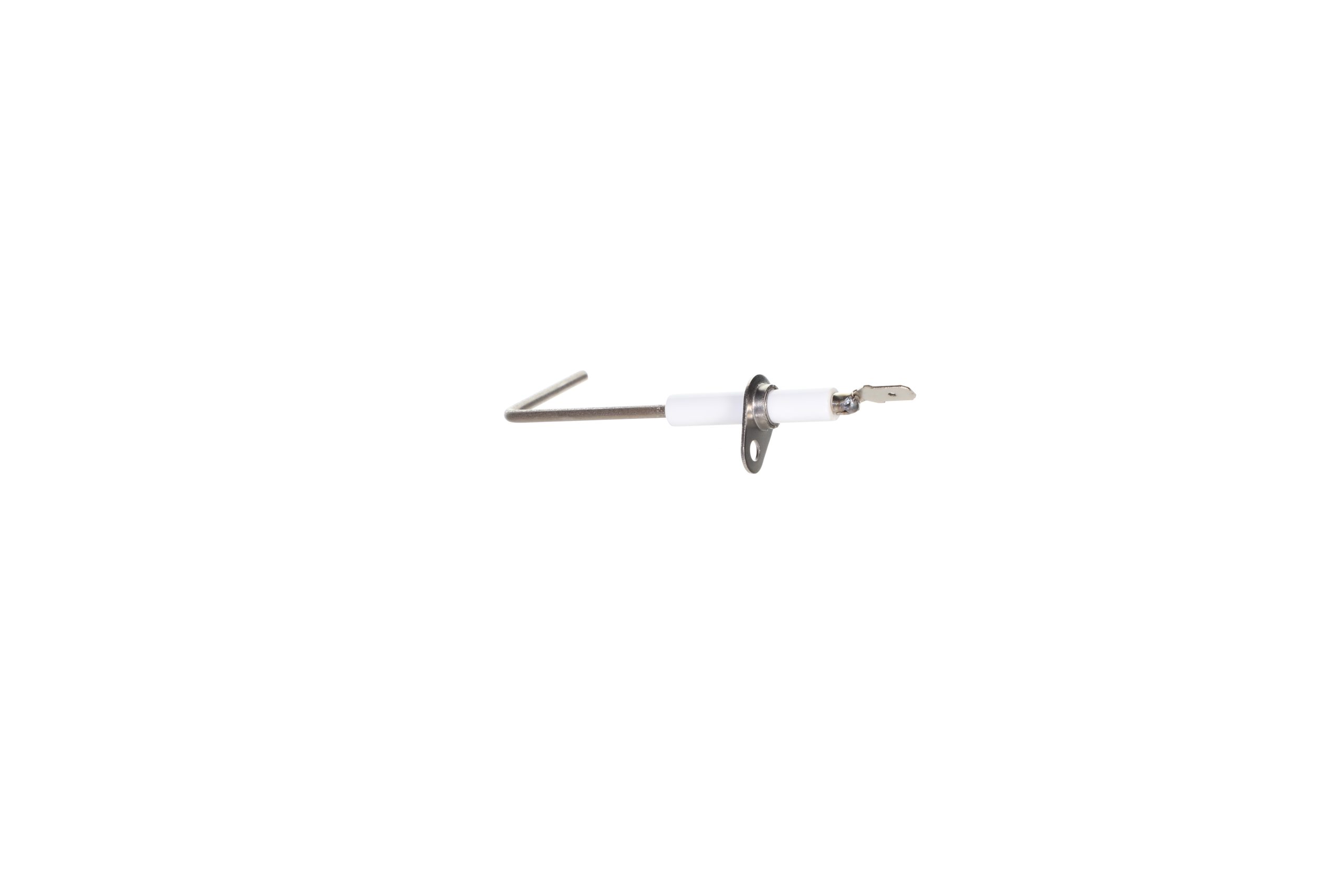

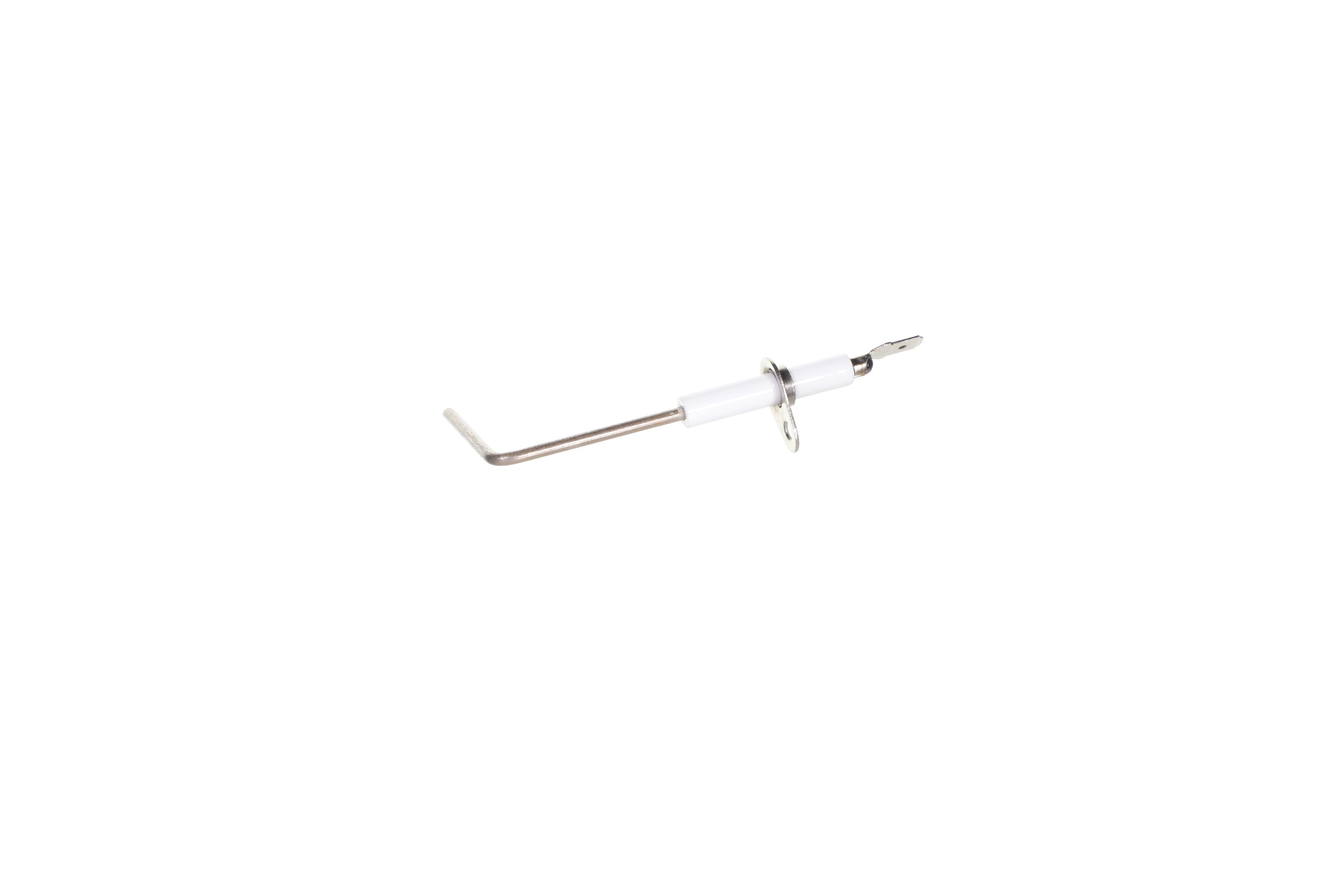

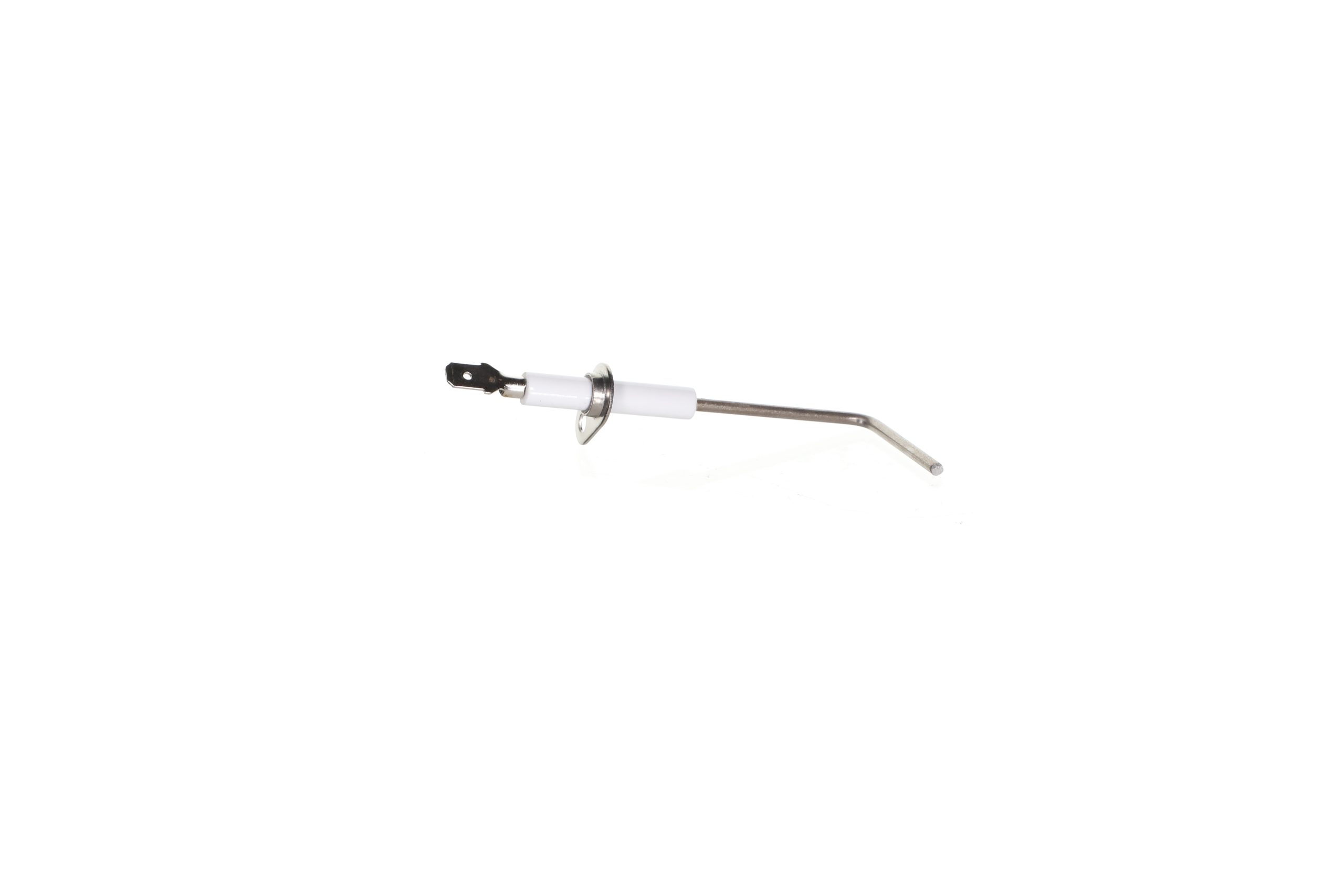

Packard PFS301 Flame Sensor with Ceramic Insulator, Single Rod, Replaces Rheem
90 Degree
Length – mounting flange to sensor tip: 2 1/2″
Length – sensor offset: 1 9/16″
Angle – sensor offset: 90 degree
Termination: 1/4″ male quick connect
Flame sensor for Hot Surface Ignition (H.S.I.) systems
Can be mounted remotely on multiple burners or adjacent to igniter on other applications
For use with spark ignition and flame sensing
High quality alumina ceramic insulator
High temperature kanthal flame rod material that can withstand 1800°F
